Data Visualization

Data-based Storytelling

Daniel Winkler

Institute for Retailing & Data Science

Stephan Fally

Department Marketing

Table of contents

• Always Visualize!
• Visual Channels
• Visualizing Uncertainty

Always Visualize!

Processing numbers is hard

library(datasauRus)
library(dplyr)
library(dagitty)
library(ggdag)
library(ggplot2)
library(gt)
library(stringr)
library(tidyr)
library(scales)

tab_ds_data <- datasaurus_dozen |>
  filter(dataset %in% c('dino', 'star')) |>
  group_by(dataset) |>
  mutate(id = 1:n()) |>
  pivot_wider(
    names_from = dataset,
    values_from = c(x,y),
    names_vary = 'slowest'
  ) |>
  select(-id) |>
  head(10)
tab_ds_data |>
  gt() |>
  cols_label(
    x_dino = 'x',
    y_dino = 'y',
    x_star = 'x',
    y_star = 'y'
  ) |>
  fmt_number() |>
  tab_spanner(
    label = "Dino",
    columns = ends_with("dino")
  ) |>
  cols_align('center') |>
  tab_spanner(
    label = "Star",
    columns = ends_with("star")
  ) |>
  tab_options(
    table.width = pct(85),
    table.font.size = 35)

Dino		Star
x	y	x	y
55.38	97.18	58.21	91.88
51.54	96.03	58.20	92.21
46.15	94.49	58.72	90.31
42.82	91.41	57.28	89.91
40.77	88.33	58.08	92.01
38.72	84.87	57.49	88.09
35.64	79.87	28.09	63.51
33.08	77.56	28.09	63.59
28.97	74.49	28.09	63.12
26.15	71.41	27.58	62.82

Summary statistics are limiting

datasaurus_dozen |>
  filter(dataset %in% c('dino', 'star')) |>
  group_by(dataset) |>
  summarize(
    avg_x = round(mean(x), digits = 2),
    sd_x = round(sd(x), digits = 2),
    avg_y = round(mean(y), digits = 2),
    sd_y = round(sd(y), digits = 2),
    cor_xy = round(cor(x,y), digits = 2)
    ) |>
  mutate(dataset = str_to_title(dataset)) |>
  gt() |>
  cols_label(
    avg_x = "Mean of x",
    sd_x = "Std. Dev. of x",
    avg_y = "Mean of y",
    sd_y = "Std. Dev. of y",
    cor_xy = "Correlation") |>
  tab_options(
    table.width = pct(85),
    table.font.size = 35)

dataset	Mean of x	Std. Dev. of x	Mean of y	Std. Dev. of y	Correlation
Dino	54.26	16.77	47.83	26.94	-0.06
Star	54.27	16.77	47.84	26.93	-0.06

datasaurus_dozen |>
  filter(dataset %in% c('dino', 'star')) |>
  mutate(dataset = str_to_title(dataset)) |>
  ggplot(aes(x = x, y = y)) +
  geom_point() +
  facet_wrap(~dataset) +
  theme_minimal() +
  theme(
    panel.grid=element_blank(),
    strip.text=element_text(size=35),
    axis.ticks=element_blank(),
    axis.text=element_blank(),
    axis.title=element_text(size=30)
  )

Exercise

See beyond summary statistics

• Select the datasets x_shape & bullseye from the data.frame datasaurus_dozen
• Create a table showing the following statistics for the two datasets:
  • mean of x and y,
  • standard deviation of x and y, and
  • covariance between x and y
• Create a plot showing the two datasets

Here is some code to get you started:

library(datasauRus)
library(dplyr)
library(ggplot2)
library(gt)
library(stringr)
library(tidyr)
filter(datasaurus_dozen, dataset %in% c('x_shape', 'bullseye')) |>
  str(give.attr = FALSE)

tibble [284 × 3] (S3: tbl_df/tbl/data.frame)
 $ dataset: chr [1:284] "x_shape" "x_shape" "x_shape" "x_shape" ...
 $ x      : num [1:284] 38.3 35.8 32.8 33.7 37.2 ...
 $ y      : num [1:284] 92.5 94.1 88.5 88.6 83.7 ...

Visual Channels

Visualizing different magnitudes

• We can express the comparison of numbers in multiple ways
• Some representations can be interpreted (by humans) more accurately
• According to (franconeriScienceVisualData2021?) from most to least accurate:
  • Position
  • Length
  • Area
  • Angle
  • Intensity

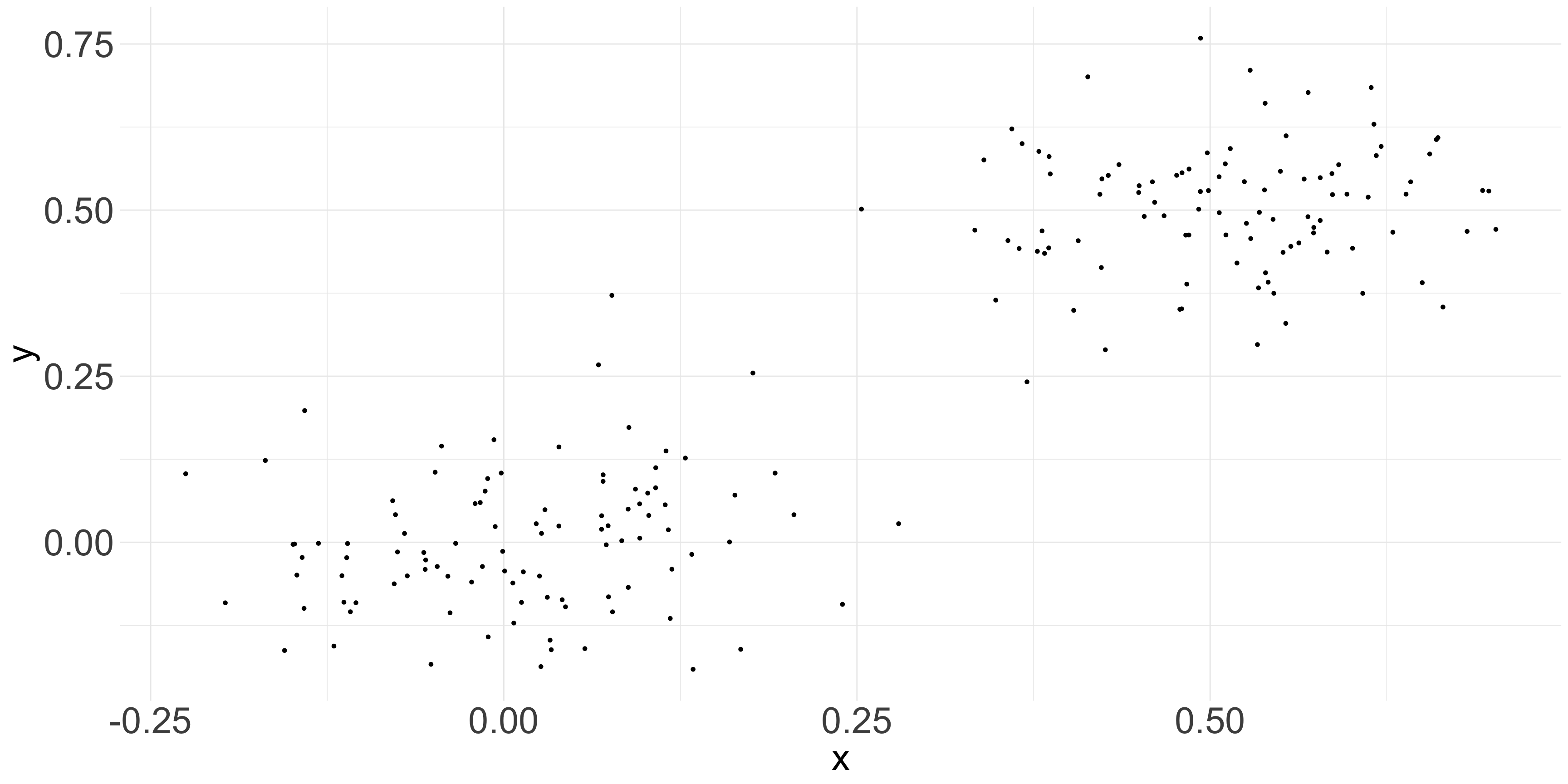

Visualizing “sameness”

Caution: these can create spurious interpretations

related_data <- data.frame(
  x = c(rnorm(100, 0, 0.1), rnorm(100, 0.5, 0.1)),
  y = c(rnorm(100, 0, 0.1), rnorm(100, 0.5, 0.1)))
ggplot(related_data, aes(x = x , y = y)) +
  geom_point(size = 1.2) +

  theme_minimal() +
  theme(
    plot.title=element_text(size=35),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=30),
    axis.title=element_text(size=30)
  )

Counteract by using another principle

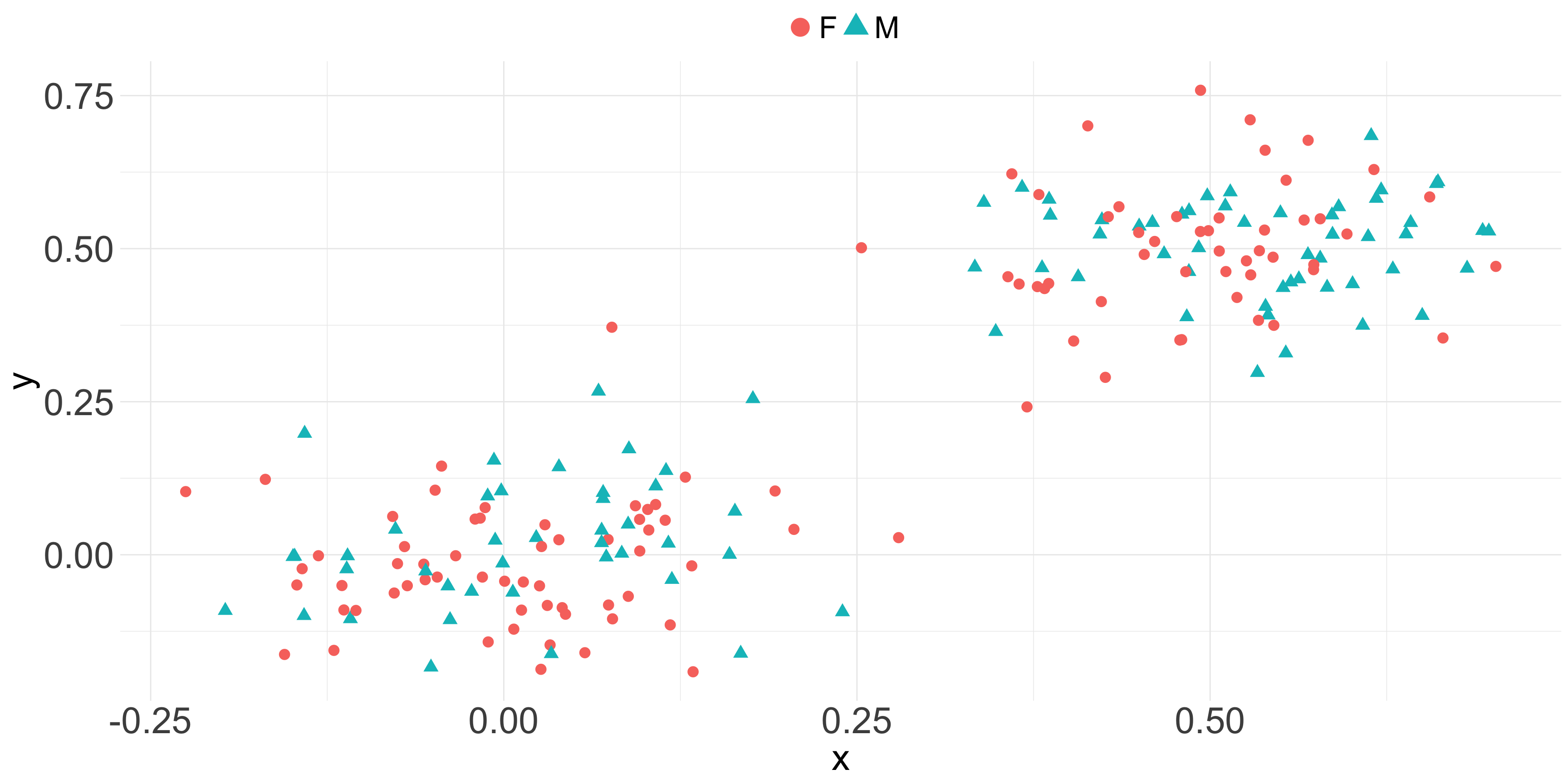

related_data$g <- as.factor(ifelse(rbinom(200, 1, prob = 0.5) == 1, 'F', 'M'))
ggplot(related_data, aes(x = x , y = y, color = g, shape = g)) +
  geom_point(size = 4) +
  guides(colour = guide_legend(override.aes = list(size=7))) +
  theme_minimal() +
  theme(
    plot.title=element_text(size=35),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=30),
    axis.title=element_text(size=30),
    legend.title = element_blank(),
    legend.position = 'top',
    legend.text = element_text(size = 25)
  )

Position is interpreted most accurately

• Common y-axis alignment allows for accurate interpretation
• Categories in the x-axis sorted by y-axis value
• Position should encode the answer to the questions the audience asks

library(palmerpenguins)
library(forcats)
fct_revfreq <- \(x) fct_rev(fct_infreq(x))

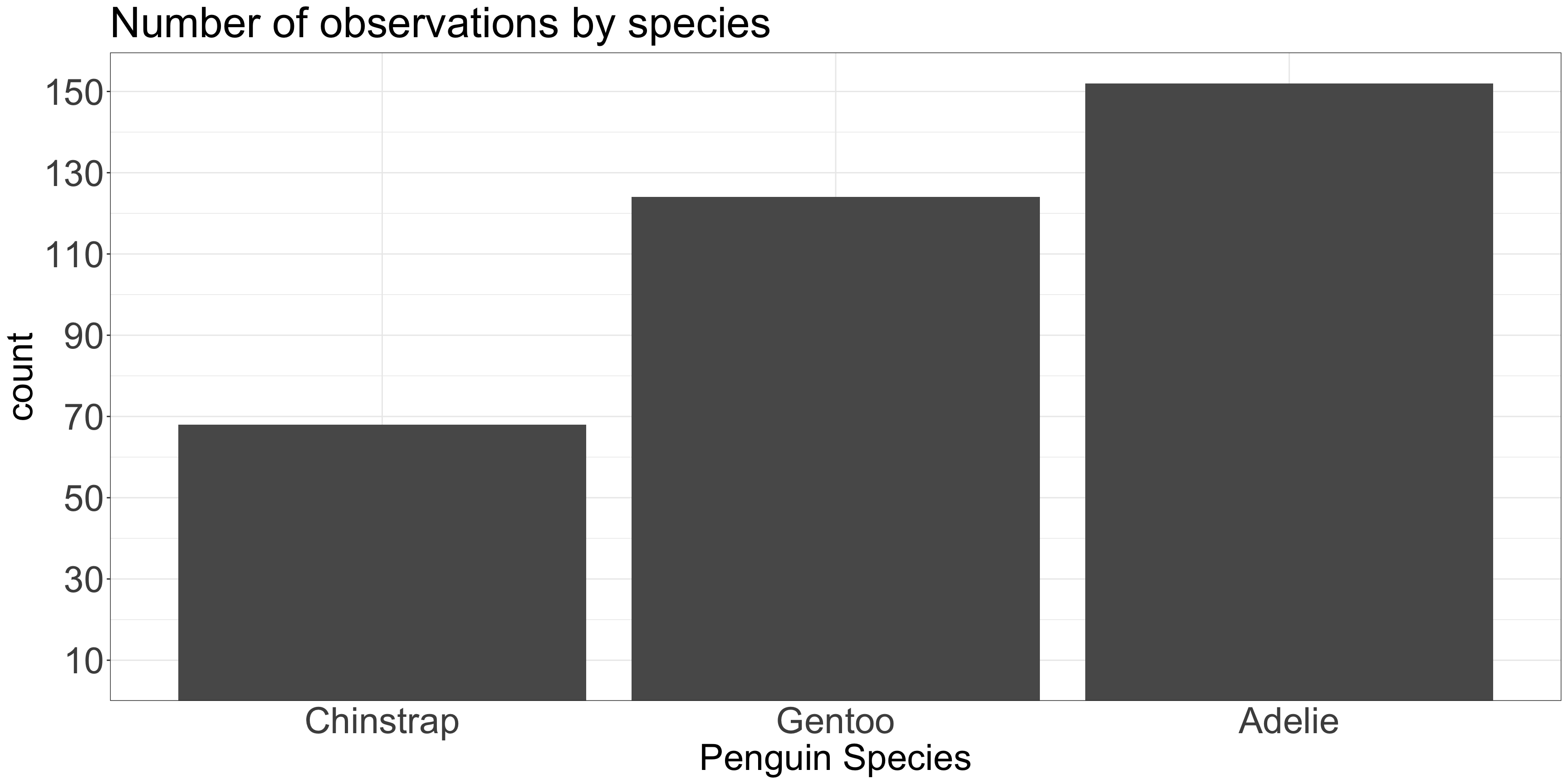

ggplot(penguins, aes(x = fct_revfreq(species))) +
  geom_bar(stat = "count") +
  scale_y_continuous(
    expand = expansion(c(0,0.05)),
    breaks = seq(10,150, by = 20)) +
  labs(
    title = "Number of observations by species",
    x = "Penguin Species"
    ) +
  theme_bw() +
    theme(
    plot.title=element_text(size=35),
    legend.text=element_text(size=25),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=30),
    axis.title=element_text(size=30)
  )

Lengths of unaligned segments are harder to compare

• Are there more female Gentoo or female Adelie penguins?
• Are there more male or female Gentoo penuins?

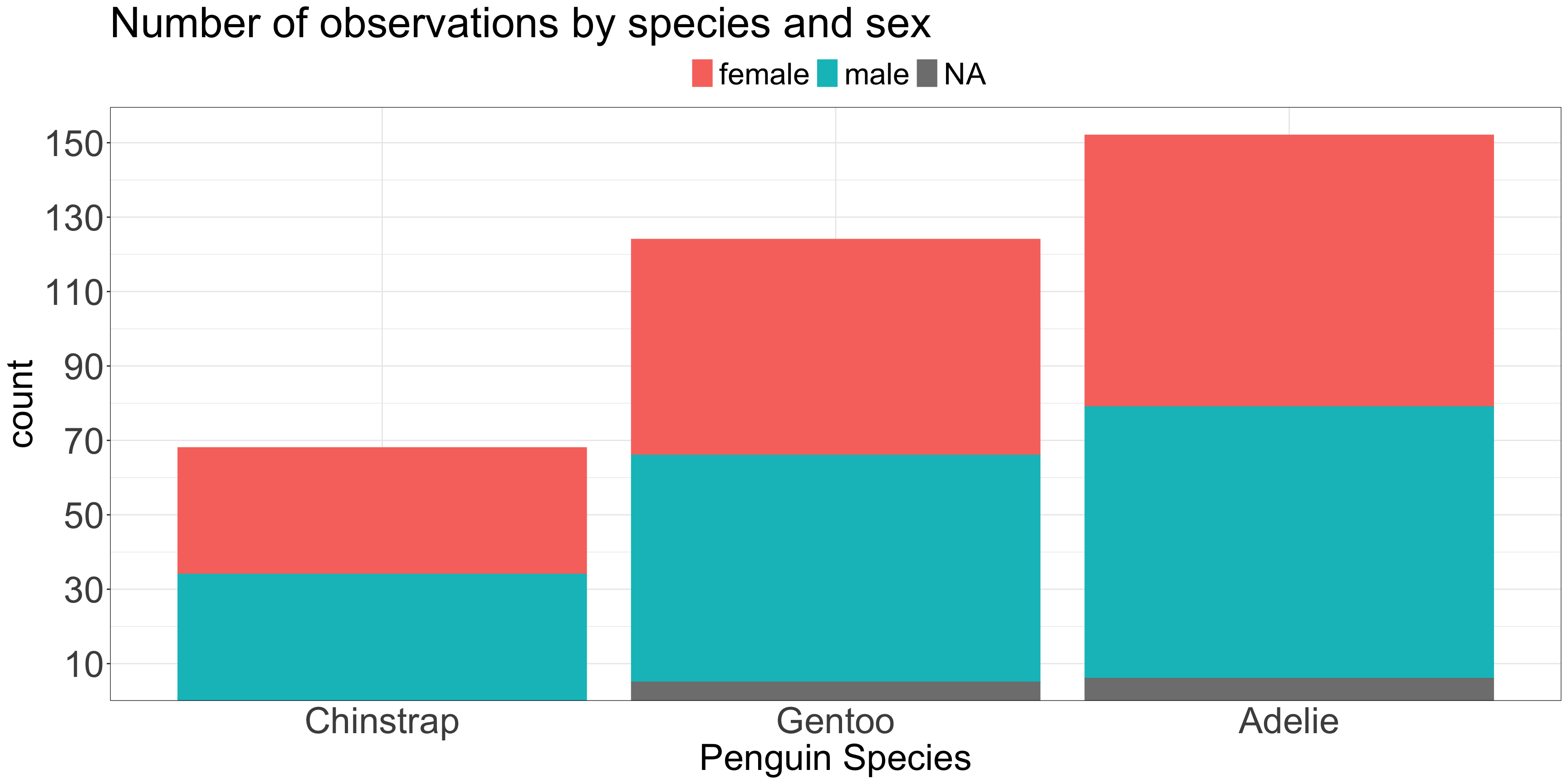

ggplot(penguins, aes(x = fct_revfreq(species), color = sex, fill = sex)) +
  geom_bar(stat = "count") +
  scale_y_continuous(
    expand = expansion(c(0,0.05)),
    breaks = seq(10,150, by = 20)) +
  labs(
    title = "Number of observations by species and sex",
    x = "Penguin Species"
    ) +
  theme_bw() +
    theme(
    plot.title=element_text(size=35),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=30),
    axis.title=element_text(size=30),
    legend.position='top',
    legend.text=element_text(size=25),
    legend.title=element_blank()
  )

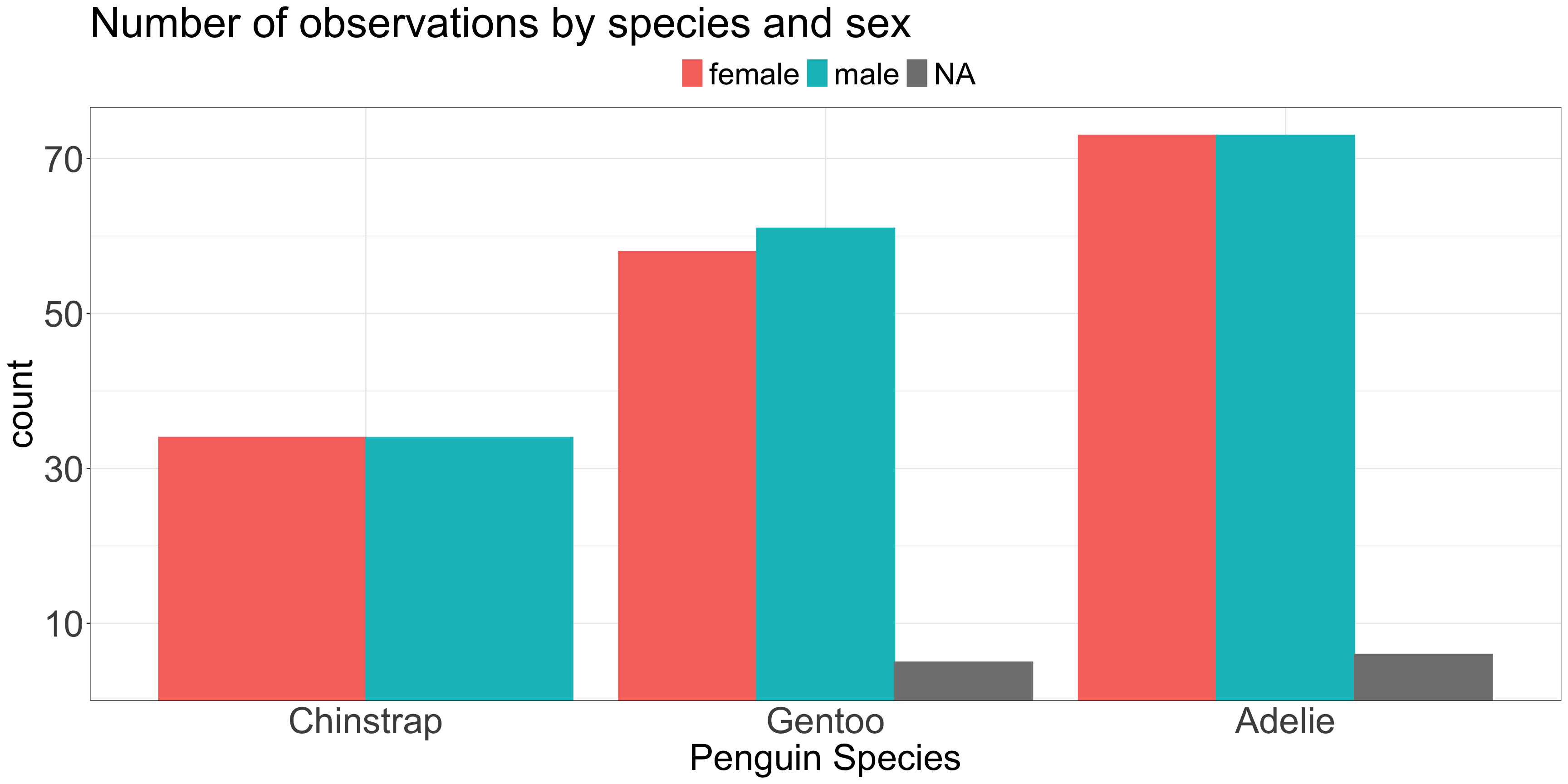

If the total number is not important but sub-group numbers are…

• Are there more female Gentoo or female Adelie penguins?
• Are there more male or female Gentoo penuins?

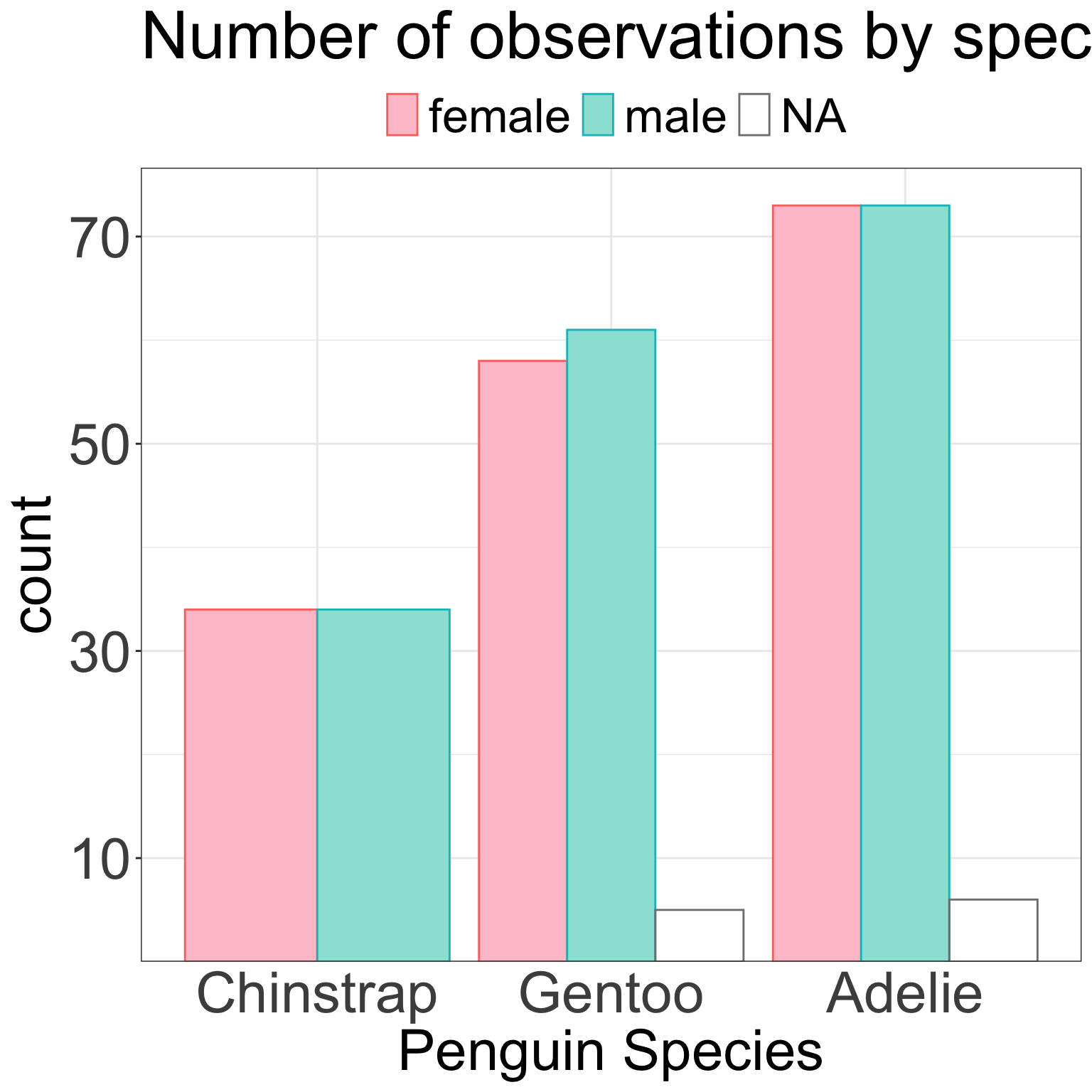

ggplot(penguins, aes(x = fct_revfreq(species), color = sex, fill = sex)) +
  geom_bar(stat = "count", position = 'dodge') +
  scale_y_continuous(
    expand = expansion(c(0,0.05)),
    breaks = seq(10,150, by = 20)) +
  labs(
    title = "Number of observations by species and sex",
    x = "Penguin Species"
    ) +
  theme_bw() +
    theme(
    plot.title=element_text(size=35),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=30),
    axis.title=element_text(size=30),
    legend.position='top',
    legend.text=element_text(size=25),
    legend.title=element_blank()
  )

Using pre-attentive attributes

• Action potentials are means of communication between neurons in the brain
• The probability of firing depends on the strength of the stimulus
• The strength of the stimulus is relative to the background
• All or nothing process
  • Once the threshold is exceeded the neuron fires
• Takeaway for visualization:
  • Most important information needs to be “highlighted” relativ to all other information

How many “b”s are there?

• top-down attention: deliberate & slow

set.seed(1)
xy = expand.grid(seq(0,1, length.out = 5), seq(0,1, length.out = 5))
text = sample(c("a", "b", "c", "d", "e"), 25, replace = TRUE)
par(mar = c(0.1,0,0,0))
plot(c(0, 1), c(0, 1), ann = F, bty = 'n',type = 'n', xaxt = 'n', yaxt = 'n')
text(xy[,1], xy[,2], text, cex = 3)

How many “b”s are there?

• bottom-up attention: unconscious & fast

par(mar = c(0,0,0,0))
plot(c(0, 1), c(0, 1), ann = F, bty = 'n',type = 'n',  xaxt = 'n', yaxt = 'n')
text(xy[,1], xy[,2], text, cex = 3, col = ifelse(text == "b", "black", "gray"))

How many “ш”s are there?

par(mar = c(0,0,0,0))
text_cyr <- sample(c("ш", "ц", "ж", "є", "ґ"), 25, replace = TRUE)
plot(c(0, 1), c(0, 1), ann = F, bty = 'n',type = 'n',  xaxt = 'n', yaxt = 'n')
text(xy[,1], xy[,2], text_cyr, cex = 3, col = ifelse(text_cyr == "ш", "black", "gray"))

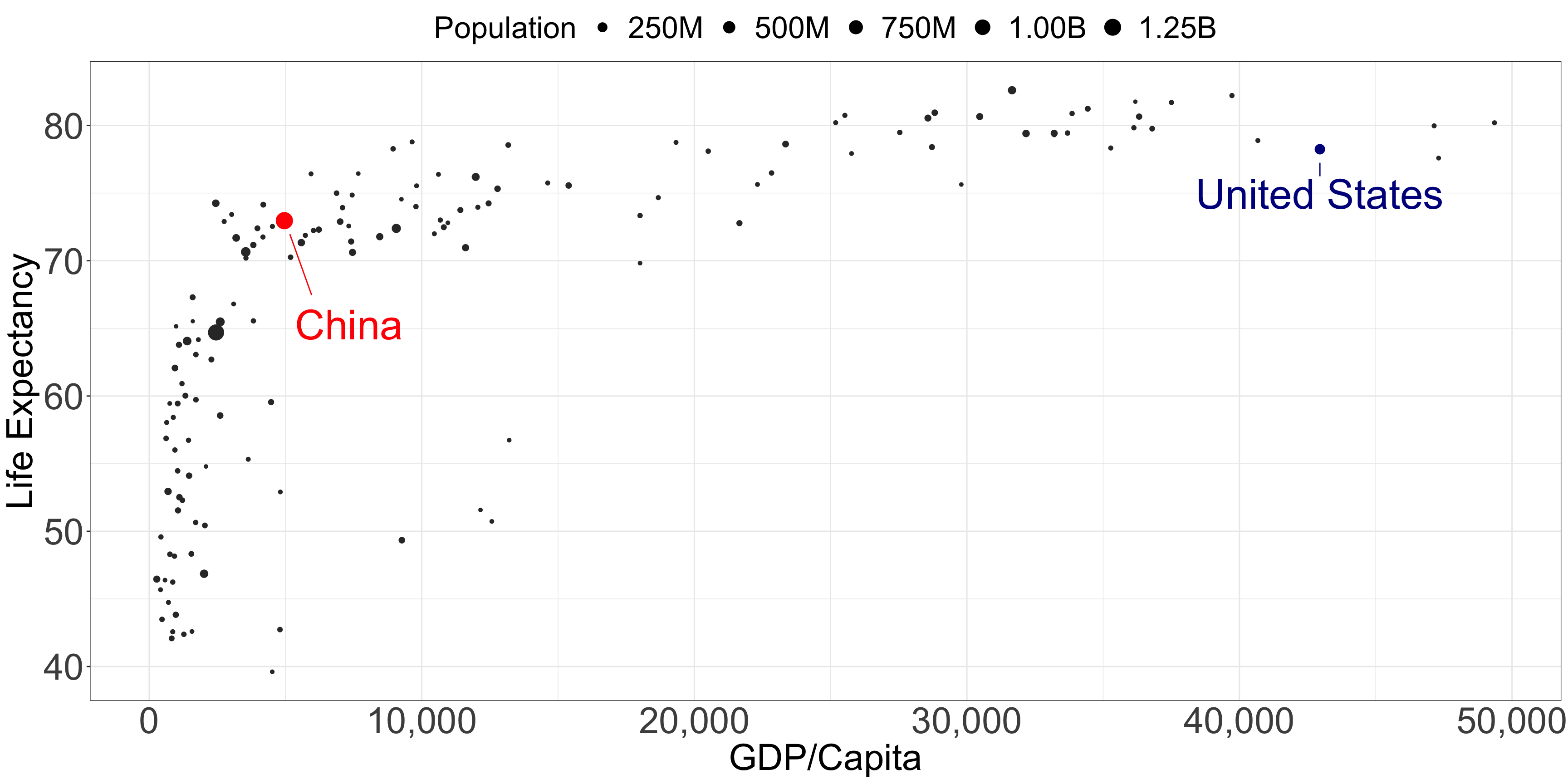

Areas can be useful to add a third (least important) variable

library(gapminder)
library(dplyr)
library(scales)
gm_last <- gapminder |>
  group_by(country) |>
  slice_max(year) |>
  mutate(hl = as.factor(ifelse(country %in% c("China", "United States"), country, 'other')))
ggplot(gm_last, aes(y = lifeExp, x = gdpPercap, size = pop, color = hl)) +
  geom_point() +
  scale_size(
    name = "Population",
    labels = label_number(scale_cut = cut_short_scale()),
    ) +
  geom_text(
    aes(label = country, x = gdpPercap, y = lifeExp),
    data = filter(gm_last, country %in% c('China', 'United States')),
    hjust = c(-0.1, 0.5),
    vjust = c(4, 2),
    size = 12
    ) +
  geom_segment(
  aes(
    x = gdpPercap + c(200, 0),
    y = lifeExp - 1,
    xend = gdpPercap+c(1000, 0),
    yend = lifeExp-c(5.5, 2)),
  data = filter(gm_last, country %in% c('China', 'United States')),
  size = 0.5
  ) +
  scale_x_continuous(labels = label_comma()) +
  scale_color_manual(values = c('gray20', 'red', 'darkblue')) +
  guides(colour = 'none') +
  labs(y = "Life Expectancy", x = "GDP/Capita") +
  theme_bw() +
    theme(
    plot.title=element_text(size=35),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=30),
    axis.title=element_text(size=30),
    legend.position='top',
    legend.text=element_text(size=25),
    legend.title=element_text(size=25)
  )

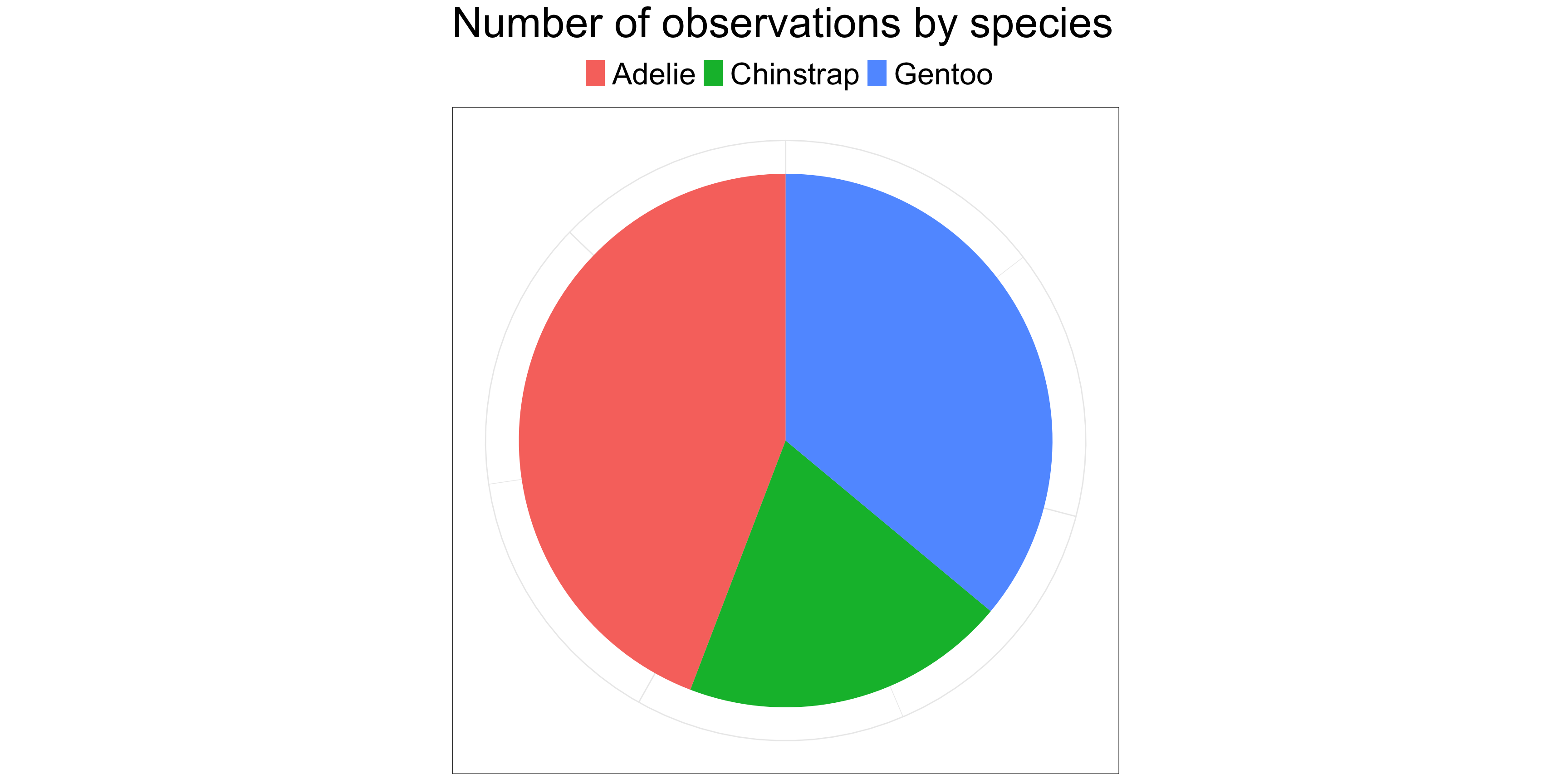

Do not use pie-charts… just don’t

penguins |>
  group_by(species) |>
  summarize(count = n()) |>
ggplot(aes(x = "", y = count, fill = species)) +
  geom_bar(stat = "identity") +
  labs(
    title = "Number of observations by species",
    ) +
  theme_bw() +
    theme(
    plot.title=element_text(size=35),
    axis.ticks=element_blank(),
    axis.text=element_blank(),
    axis.title=element_blank(),
    legend.position='top',
    legend.text=element_text(size=25),
    legend.title=element_blank()
  ) +
  coord_polar("y", start=0)

Exercise

Perceptual accuracy

• Create a graph that shows the population of penguins for the different species per island
• It is of particular interest which species is the most common on each island
• Create another graph that shows the analysis separately for the two sexes

Visualizing many categories (badly!)

• What is the 5th smallest state?
• Where does MO rank in terms of size?

library(datasets)
library(scales)

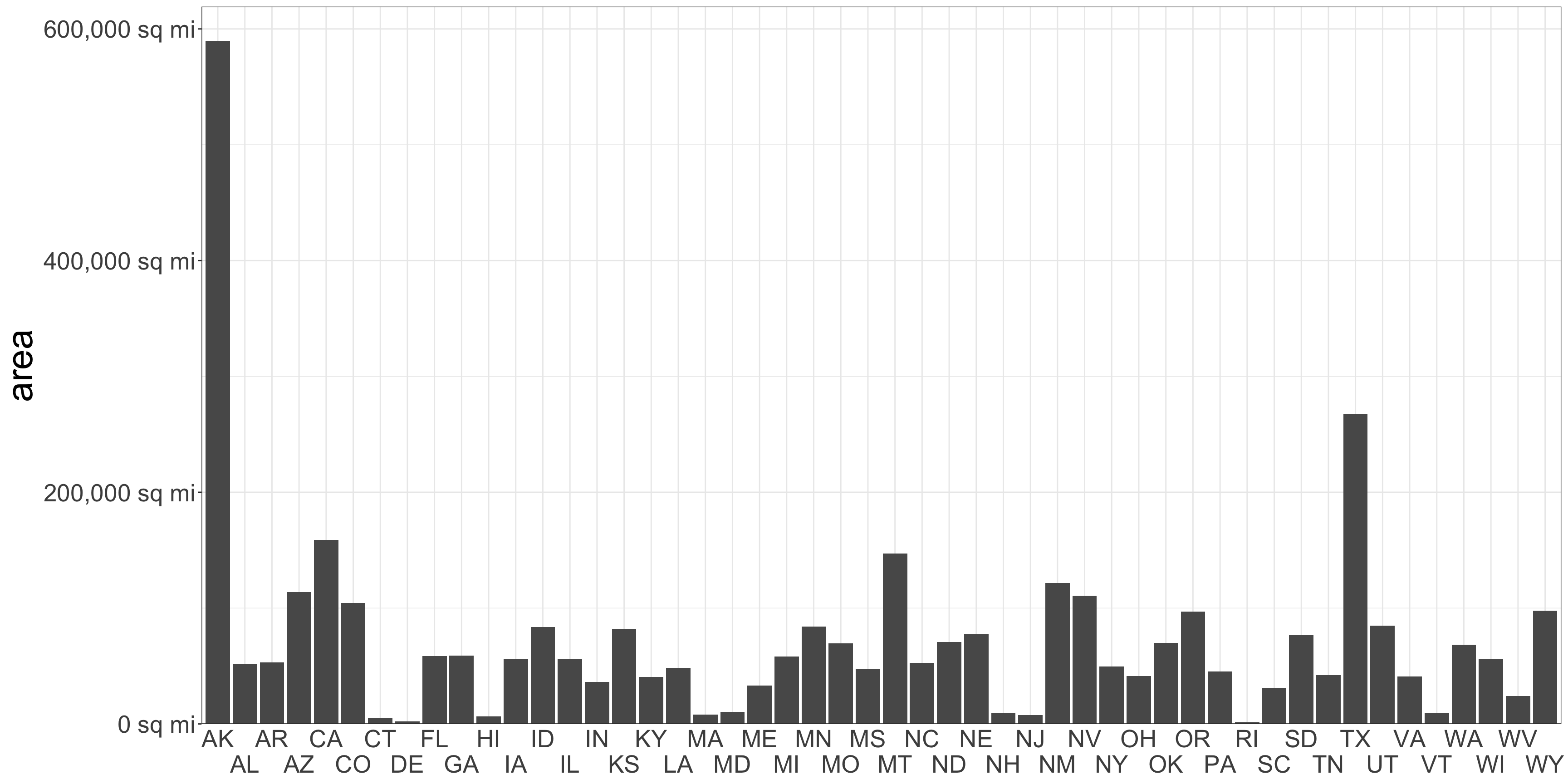

ggplot(data.frame(abb = state.abb, area = state.area), aes(x = abb, y = area)) +
  geom_bar(stat = 'identity') +
  scale_x_discrete(guide = guide_axis(n.dodge = 2)) +
  scale_y_continuous(
    expand = expansion(c(0,0.05)),
    labels = label_comma(suffix = " sq mi")) +
  theme_bw() +
    theme(
    plot.title=element_text(size=35),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=20),
    axis.title=element_text(size=30),
    axis.title.x=element_blank()
  )

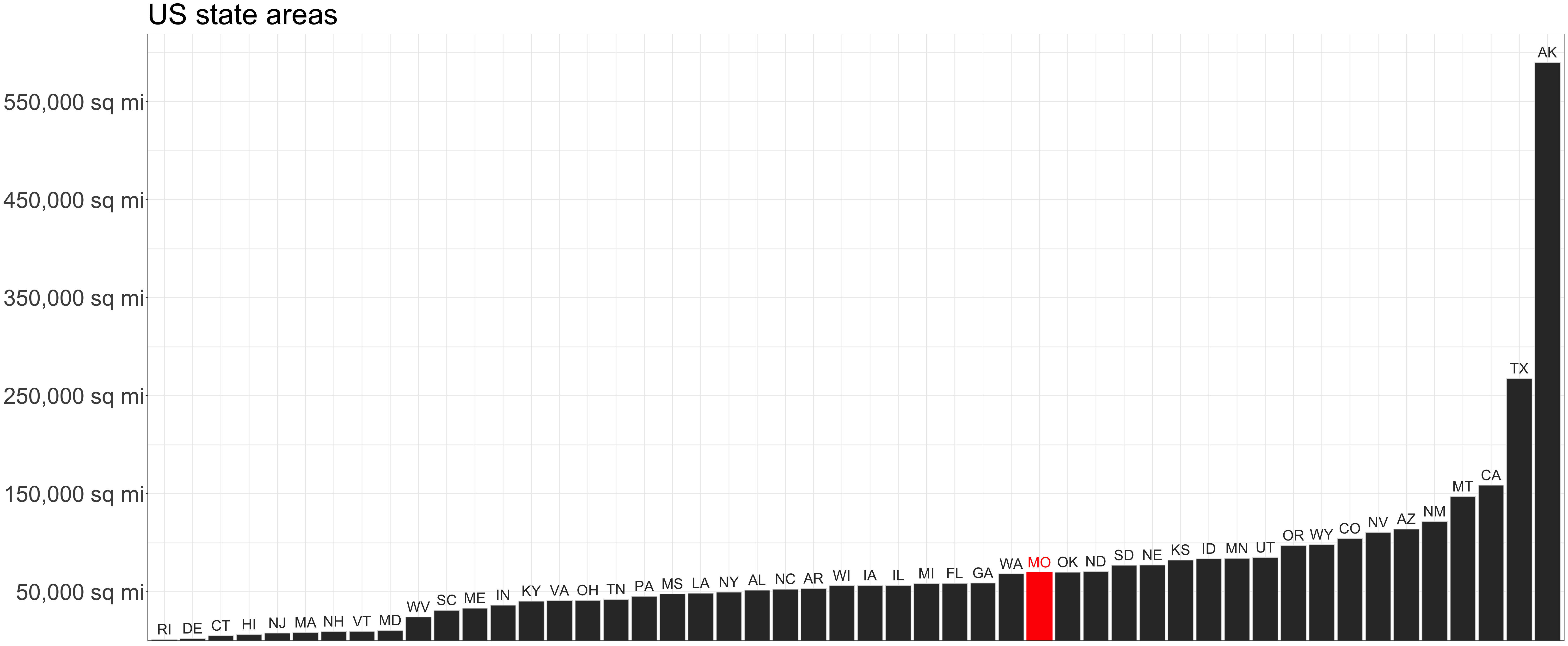

Visualizing many categories

• What is the 5th smallest state?
• Where does MO rank in terms of size?

library(colorspace)
library(forcats)
state_areas <- data.frame(abb = state.abb, area = state.area, name = state.name) |>
  mutate(abb = fct_reorder(abb, area))
ggplot(state_areas, aes(x = abb, y = area,
  color = abb == 'MO', fill = abb == 'MO')) +
  geom_bar(stat = 'identity') +
  scale_y_continuous(
    expand = expansion(c(0,0.05)), breaks = seq(50000,600000, by = 100000),
    labels = label_comma(suffix = " sq mi")) +
  scale_color_manual(values = c('gray85', 'red')) +
  scale_fill_manual(values = c('gray20', 'red')) +
  geom_text(
    aes(label=abb, y = area),
    position=position_dodge(width=0.9),
    vjust=-0.50,
    color = ifelse(state_areas$abb=='MO', 'red', 'gray20'),
    size = 8)+
  labs(title = "US state areas") +
  theme_bw() +
    theme(
    plot.title=element_text(size=45),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=35),
    axis.text.x=element_blank(),
    axis.title=element_blank(),
    legend.position='none'
  )

Color intensity provides less accurate encoding

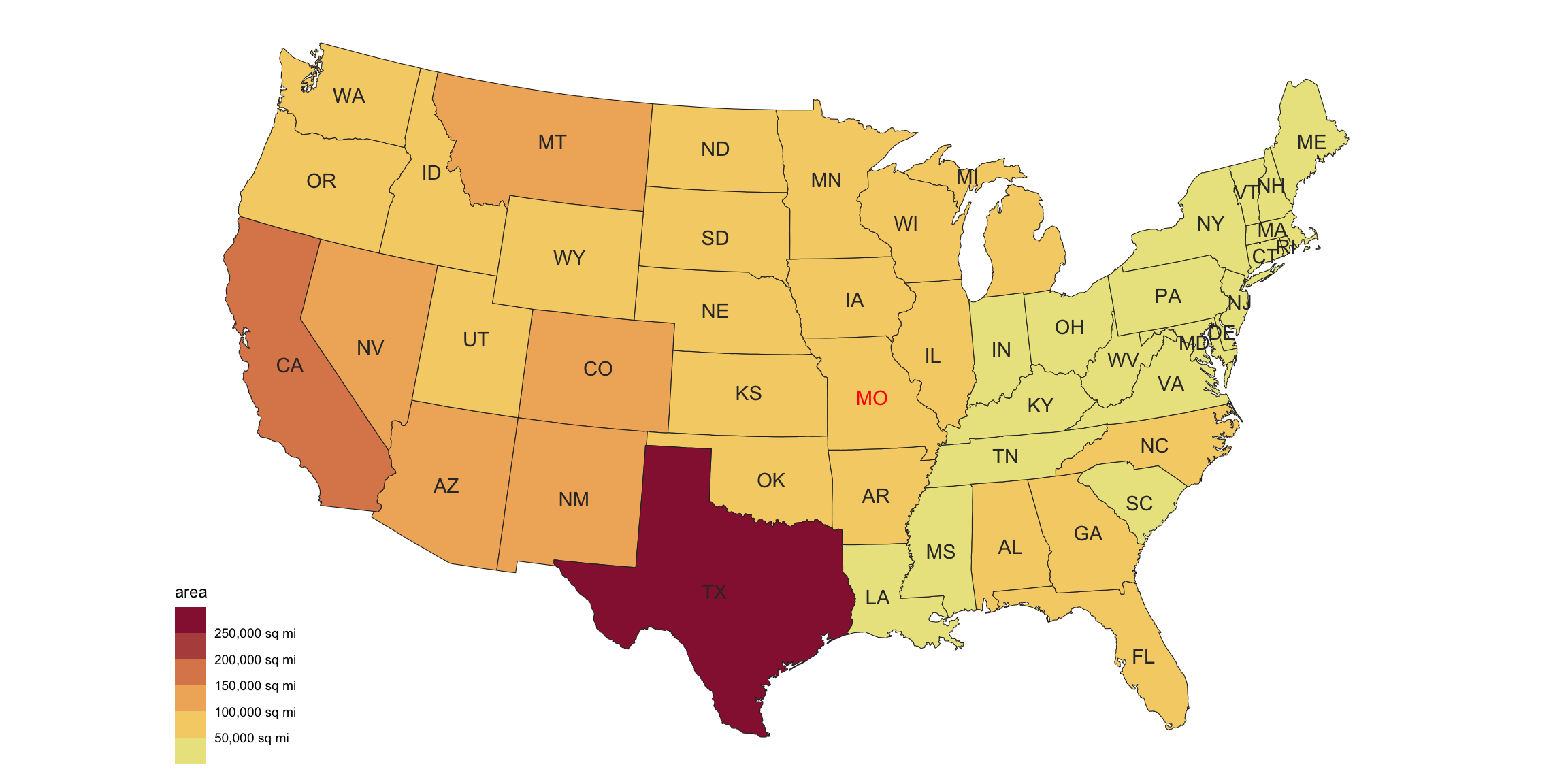

library(maps)
library(sf)
library(colorspace)
us_map_data <- map("state", fill=TRUE, plot =FALSE)

usa <- st_as_sf(map("state", fill=TRUE, plot =FALSE))
usa <- merge(
  usa,
  mutate(state_areas, ID = str_to_lower(name)),
  )
ggplot(usa) +
  geom_sf(aes(fill = area), color = "#2b2b2b", size=0.125) +
  coord_sf(crs = st_crs(6350)) +
  geom_sf_text(aes(label = abb, color = abb == 'MO')) +
  scale_color_manual(values = c('gray20', 'red')) +
  guides(color = 'none') +
  ggthemes::theme_map() +
  scale_fill_binned_sequential(
    palette = "Heat",
    labels = label_comma(suffix = " sq mi")
    )

Colors are useful to mark targets for preattentive processing

• Large scale spatial data needs to be “projected” to 2D
• Most well known projection is 4326 measured in degrees latitude and longitude
• However, there are more accurate projections for specific regions e.g, 3035 for EU+candidates

## Example using "shapefile"
### e.g. for EU download here https://ec.europa.eu/eurostat/web/gisco/geodata/reference-data/administrative-units-statistical-units/nuts
eu <- st_read("data/NUTS_RG_60M_2021_3035.shp/", quiet = TRUE)
eu0 <- filter(eu, LEVL_CODE == 0)
## Transform to longitude and latitude
eu0 <- eu0 |> st_transform(4326)
eu0_box <- eu0 |> st_bbox()
eu0_box <- eu0_box + c(50, 20, 0, -10)
ggplot(st_crop(eu0, eu0_box))+
  geom_sf(fill = 'white', lwd = 1) +
  geom_sf(data = filter(eu0, CNTR_CODE == 'AT'), color = 'red', lwd =1.5) +
  coord_sf(crs = st_crs(3035)) +
  geom_sf_text(aes(label = CNTR_CODE, color = CNTR_CODE == 'AT'), size = 15) +
  scale_color_manual(values = c('gray20', 'red')) +
  guides(color = 'none') +
  ggthemes::theme_map(base_size = 12)

Exercise

Geospacial data

• Obtain the shape (“SHP”) file for the EU + candidates from Eurostat
• Crop the data to exclude overseas territories
• Highlight the “DACH” region

“Connectedness” helps connecting the dots

charts <- arrow::read_parquet(
    "data/chart_data/spotify_charts.parquet")  |>
    filter(country %in% c("de", "fr")) |>
    group_by(country, date) |>
    summarize(total_streams = sum(streams))

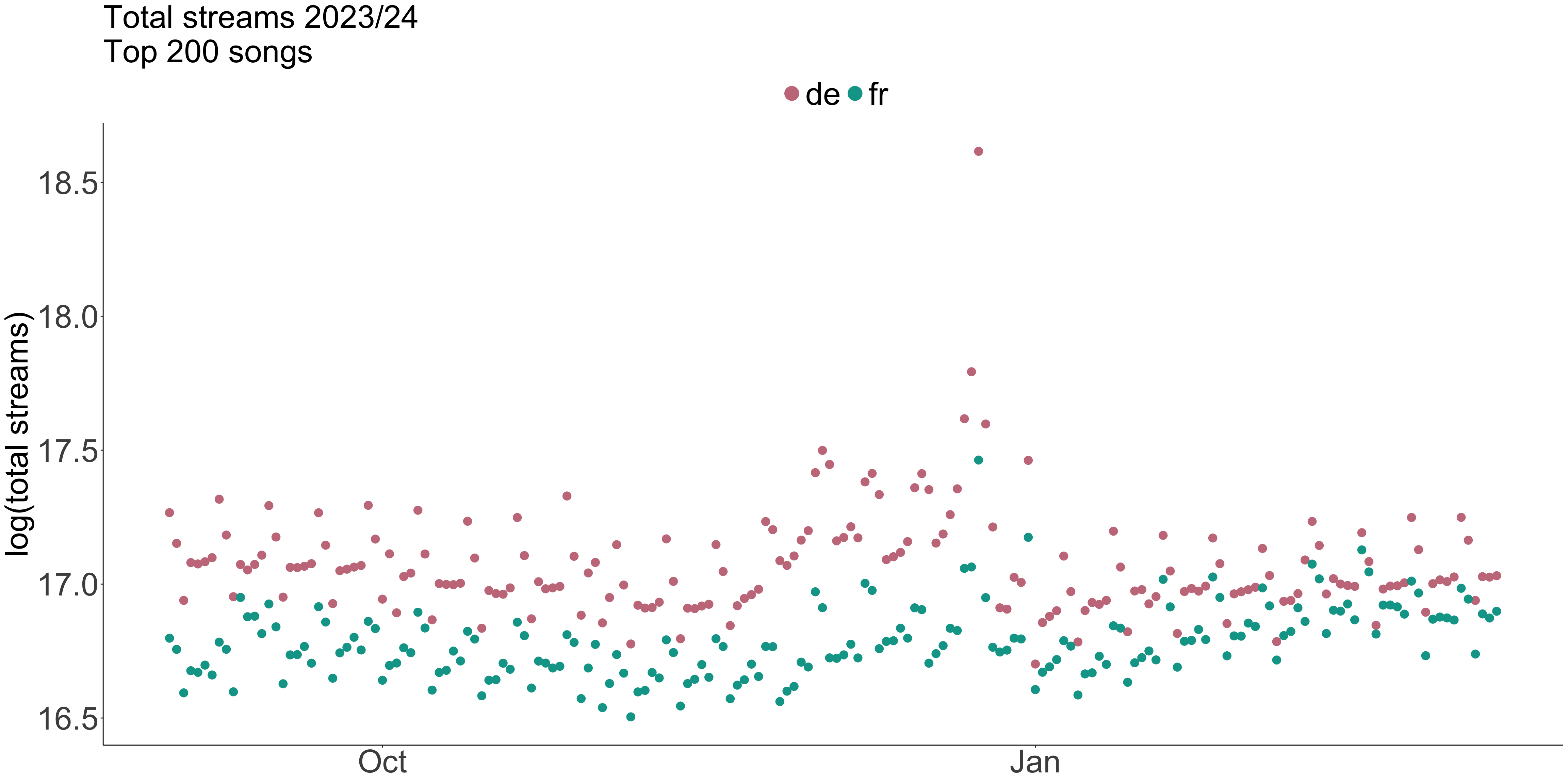

charts |>
    ggplot(aes(x = date, y = log(total_streams))) +
    geom_point(aes(color = country), size = 4) +
    guides(colour = guide_legend(override.aes = list(size=7))) +
    scale_color_discrete_qualitative(palette = "Dark 2") +
    theme_classic() +
    labs(y = "log(total streams)", title = "Total streams 2023/24", subtitle = "Top 200 songs") +
    theme(
        legend.text = element_text(size = 35),
        legend.title = element_blank(),
        axis.text=element_text(size=35),
        axis.title=element_text(size=35),
        axis.title.x=element_blank(),
        legend.position = 'top',
        plot.title = element_text(size = 35),
        plot.subtitle = element_text(size = 35)
    )

“Connectedness” helps connecting the dots

charts <- arrow::read_parquet(
    "data/chart_data/spotify_charts.parquet")  |>
    filter(country %in% c("de", "fr")) |>
    group_by(country, date) |>
    summarize(total_streams = sum(streams))

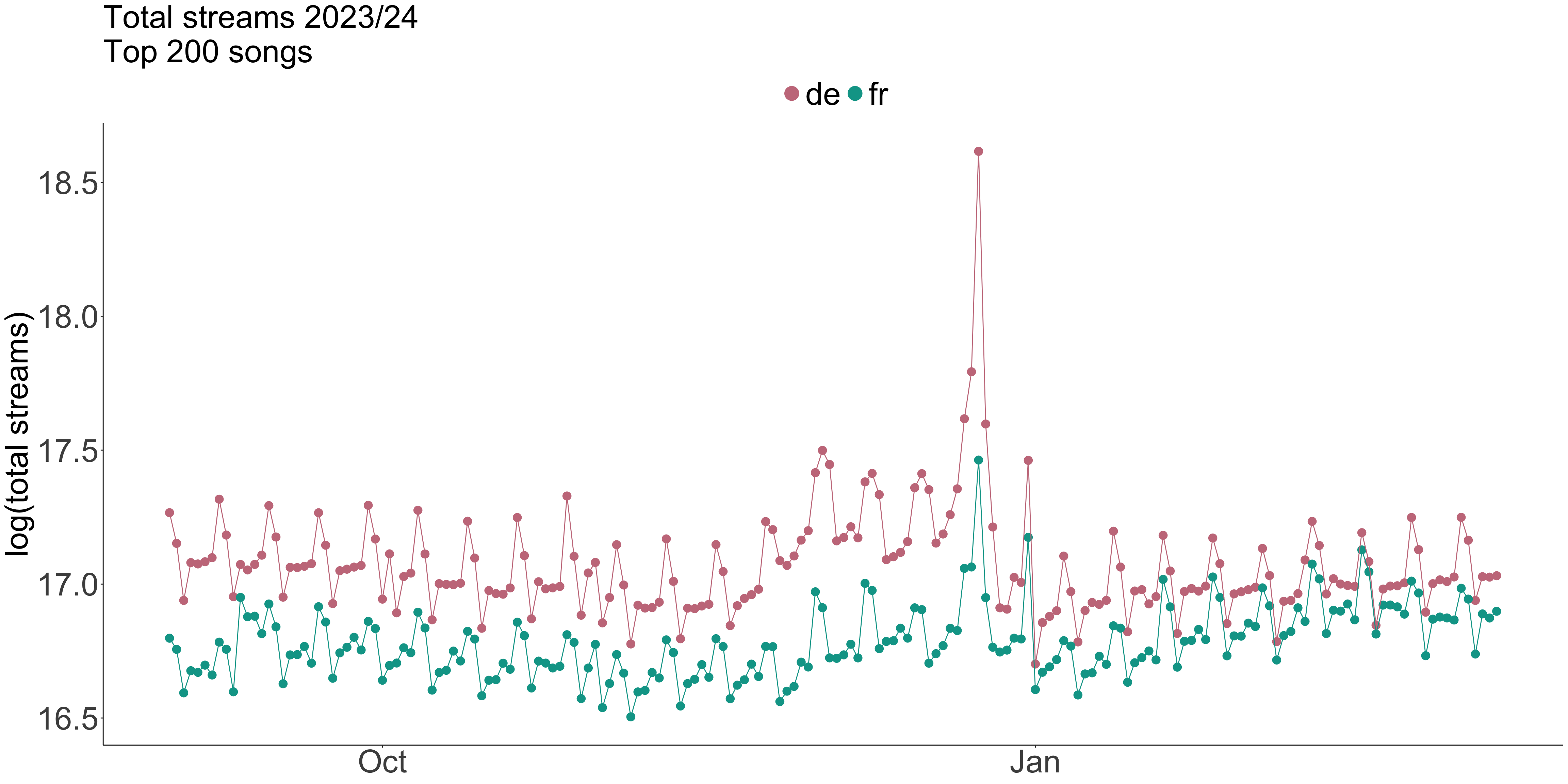

charts |>
    ggplot(aes(x = date, y = log(total_streams), color = country)) +
    geom_point(size = 4) +
    geom_line() +
    guides(colour = guide_legend(override.aes = list(size=7))) +
    scale_color_discrete_qualitative(palette = "Dark 2") +
    theme_classic() +
    labs(y = "log(total streams)", title = "Total streams 2023/24", subtitle = "Top 200 songs") +
    theme(
        legend.text = element_text(size = 35),
        legend.title = element_blank(),
        axis.text=element_text(size=35),
        axis.title=element_text(size=35),
        axis.title.x=element_blank(),
        legend.position = 'top',
        plot.title = element_text(size = 35),
        plot.subtitle = element_text(size = 35)
    )

Use scatter plots to show correlation

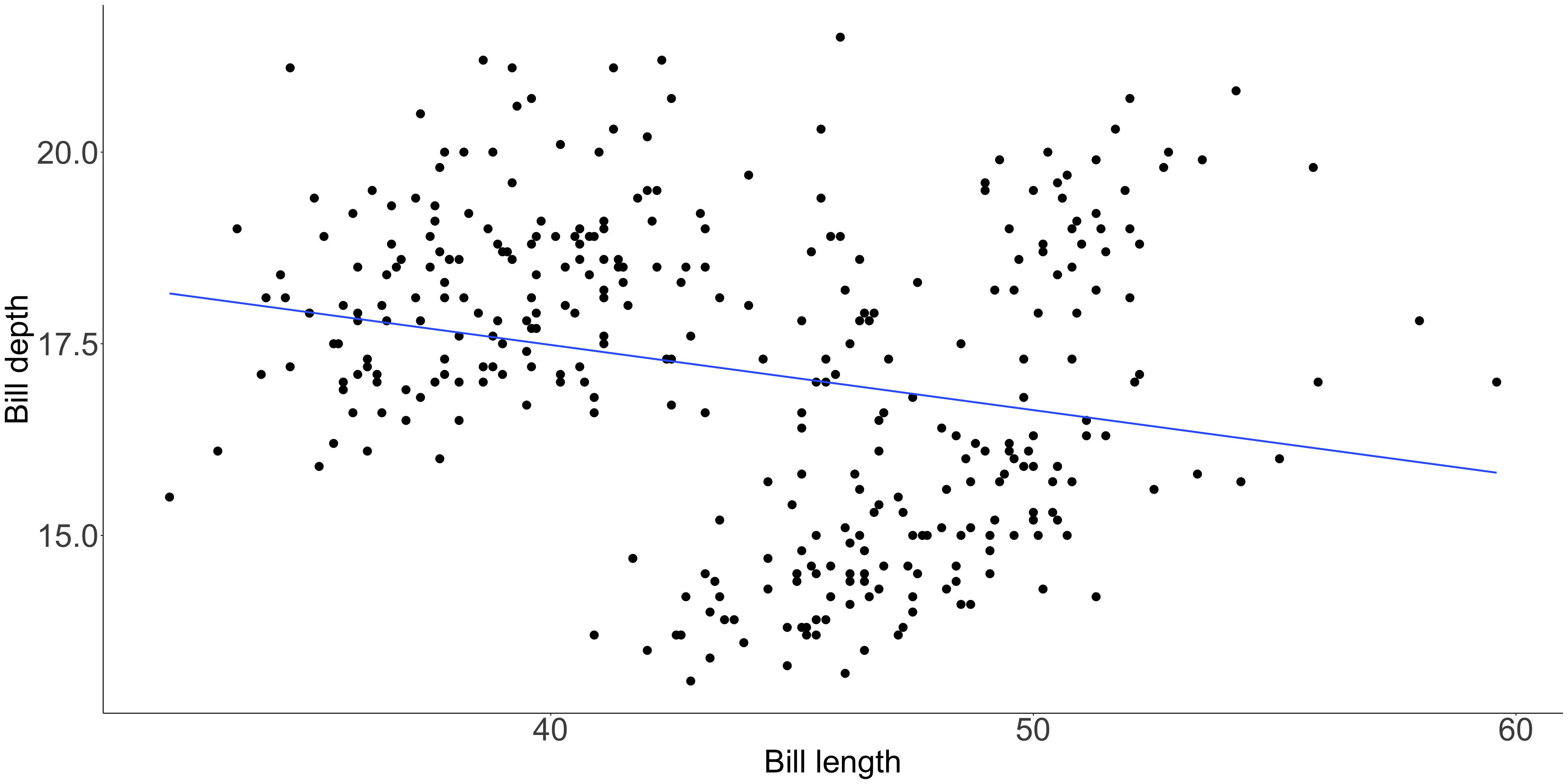

penguins |>
ggplot(aes(x = bill_length_mm, y = bill_depth_mm, #color = species
)) +
    geom_point(size = 4) +
    geom_smooth(method = 'lm', se = FALSE) +
    guides(colour = guide_legend(override.aes = list(size=7))) +
    theme_classic() +
    labs(y = "Bill depth", x = "Bill length") +
    theme(
        axis.text=element_text(size=35),
        axis.title=element_text(size=35),
    )

Beware of “Simpson’s Paradox”

• When between-group correlation is the opposite of within-group correlation

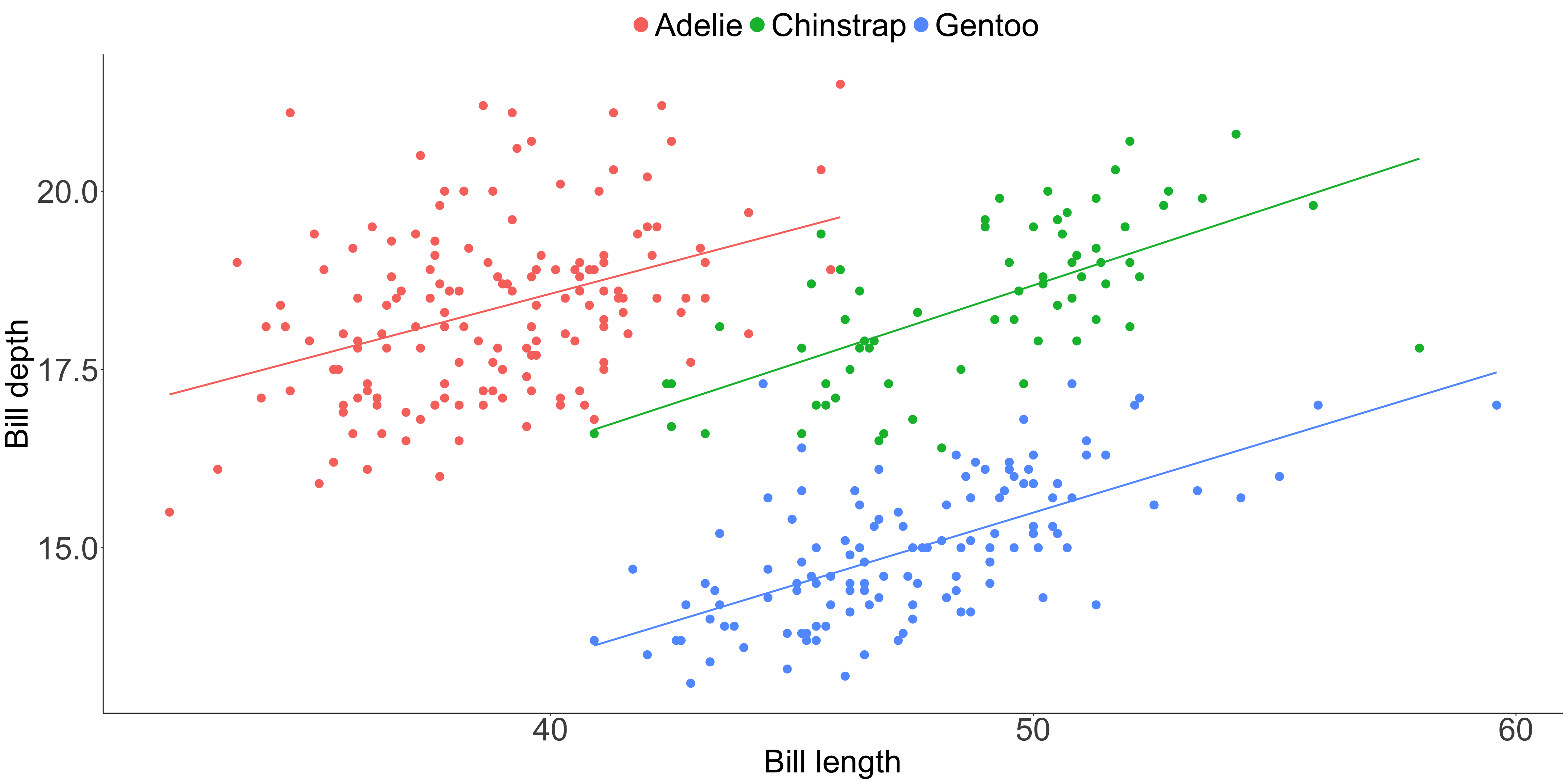

penguins |>
ggplot(aes(x = bill_length_mm, y = bill_depth_mm, color = species)) +
    geom_point(size = 4) +
    geom_smooth(method = 'lm', se = FALSE) +
    guides(colour = guide_legend(override.aes = list(size=7))) +
    theme_classic() +
    labs(y = "Bill depth", x = "Bill length") +
    theme(
        legend.text = element_text(size = 35),
        legend.title = element_blank(),
        axis.text=element_text(size=35),
        axis.title=element_text(size=35),
        legend.position = 'top',
    )

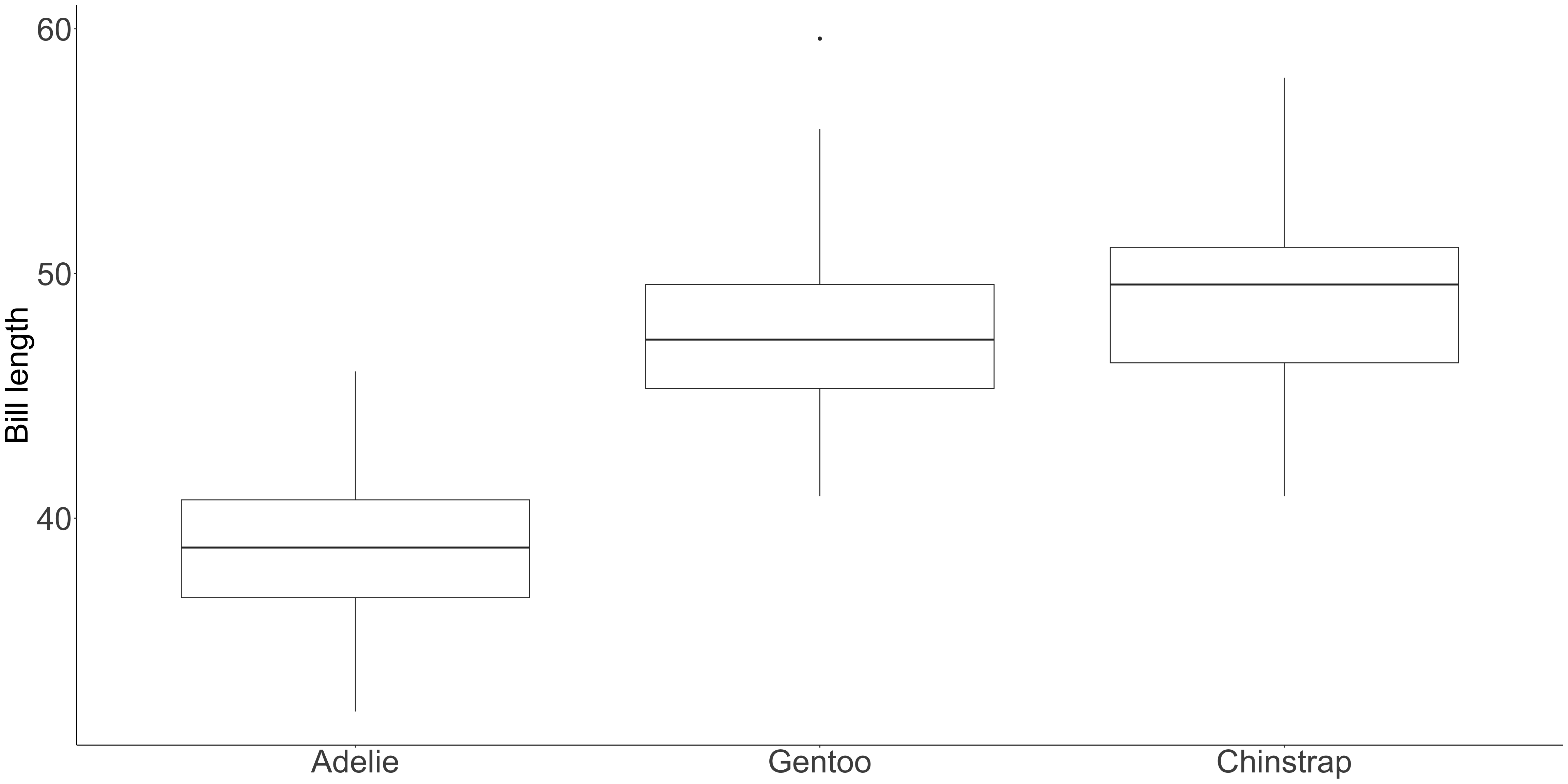

Use Boxplots to show distributions

penguins |>
ggplot(aes(
  y = bill_length_mm,
  x = fct_reorder(species, bill_length_mm, .fun = median, .na_rm = TRUE))) +
    geom_boxplot(na.rm = TRUE) +
    theme_classic() +
    labs(y = "Bill length") +
    theme(
        legend.text = element_text(size = 35),
        legend.title = element_blank(),
        axis.text=element_text(size=35),
        axis.title=element_text(size=35),
        axis.title.x=element_blank(),
        legend.position = 'top',
    )

Visualizing Uncertainty

• Recap DAGs \(\rightarrow\) observational data
• Experiments
• Model choice
• Visualization

Analyzing DAGs: Pipe

Bad Control (possibly use mediation analysis)

med <- dagify(z ~ x, y2 ~ z,
       coords = list(x = c(x = 1, z = 1.5, y2 = 2), y = c(x=1, y2 = 1, z=1))
) %>%
  tidy_dagitty() %>%
  mutate(fill = ifelse(name == "z", "Mediator", "variables of interest")) %>%
  ggplot(aes(x = x, y = y, xend = xend, yend = yend)) +
  geom_dag_point(size=7, aes(color = fill)) +
  geom_dag_edges(show.legend = FALSE)+
  geom_dag_text() +
  theme_dag() +
  theme(legend.title  = element_blank(),
        legend.position = "top")
med

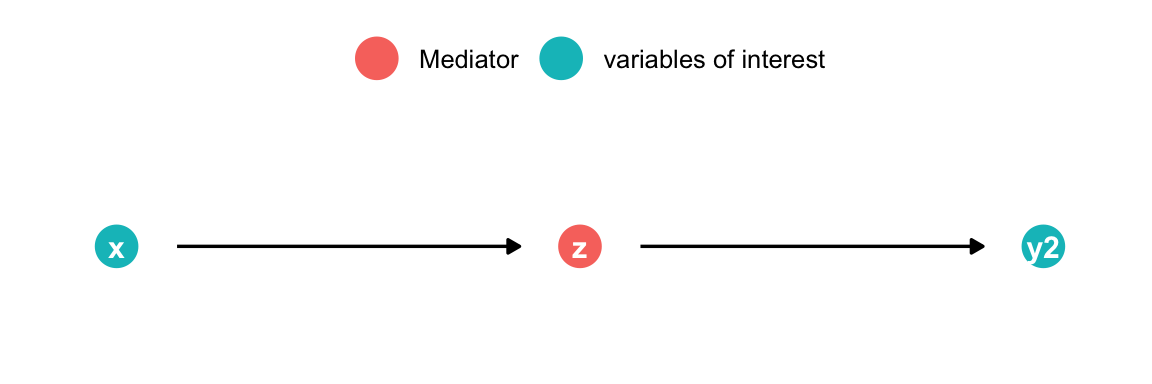

• x causes y through z
• Controlling for z blocks the causal association x \(\rightarrow\) y2

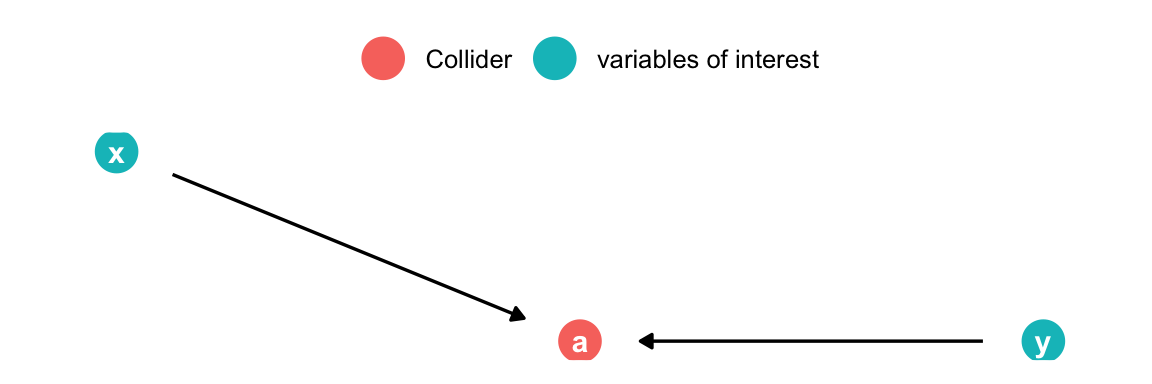

Analyzing DAGs: Collider

Bad control

dagify(a ~ x, a ~ y,
  coords = list(x = c(x = 1, y = 2, a = 1.5), y = c(x = 1, y = 0,  a = 0))
) |>
  tidy_dagitty() |>
  mutate(fill = ifelse(name == "a", "Collider", "variables of interest")) |>
  ggplot(aes(x = x, y = y, xend = xend, yend = yend)) +
  geom_dag_point(size = 7, aes(color = fill)) +
  geom_dag_edges(show.legend = FALSE) +
  geom_dag_text() +
  theme_dag() +
  theme(
    legend.title = element_blank(),
    legend.position = "top"
  )

• x & y cause a
• x & y are d-separated and uncorrelated
• By adding a to the model spurious correlation between x & y is introduced

Analyzing DAGs: Fork

Good Control

med <- dagify( x ~ d, y1 ~ d,
       coords = list(x = c(x = 1, z = 1.5, y = 2, a = 1.5, b = 2, d = 1.5, y1 = 2),
                     y = c(x = 1, y = 1, z = 1, a = 0, b = 0, d = 2, y1 = 2))
) %>%
  tidy_dagitty() %>%
  mutate(fill = ifelse(name == "d", "Confounder", "variables of interest")) %>%
  ggplot(aes(x = x, y = y, xend = xend, yend = yend)) +
  geom_dag_point(size=7, aes(color = fill)) +
  geom_dag_edges(show.legend = FALSE)+
  geom_dag_text() +
  theme_dag() +
  theme(legend.title  = element_blank(),
        legend.position = "top")
med

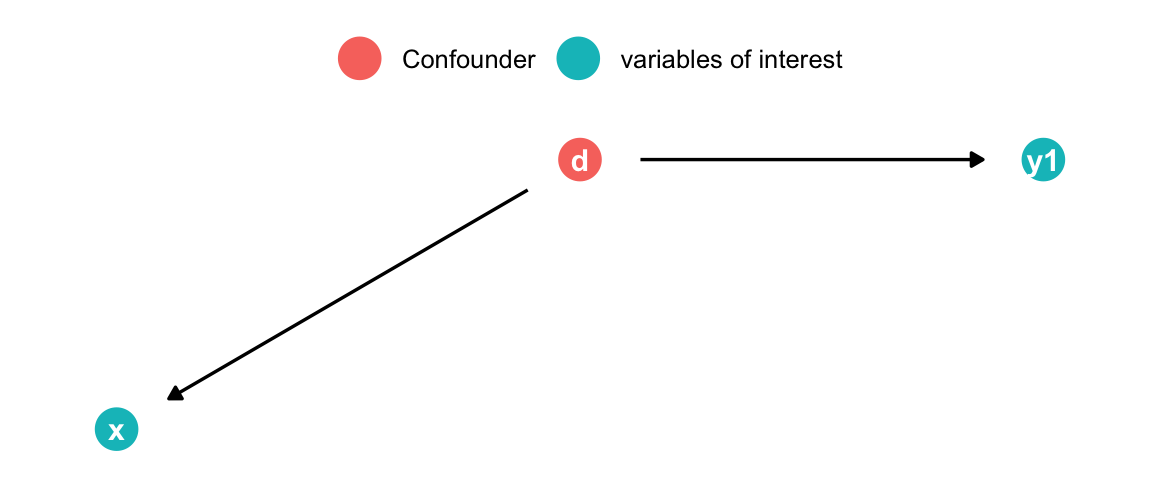

• d causes both x and y1
• Arrows pointing to x are called “back-door” paths
• Controlling for d “blocks” the non-causal association x \(\rightarrow\) y1

• Eliminated by randomized experiment! Why?

Randomized experiments

• Researcher manipulates the variable of interest (x)
• Holding all other variables (confounders) constant
• To check the “pure” causal effect of the manipulation on the relevant outcome (y)
• Intuition: variation in y has to be due to x as all other things are kept constant

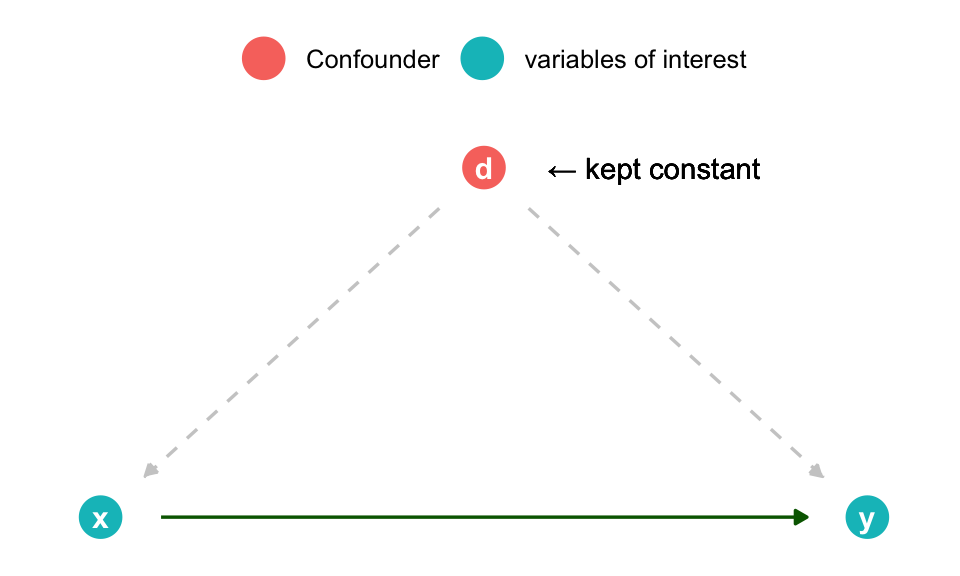

exper <- dagify( x ~ d, y ~ d, y ~ x,
       coords = list(x = c(x = 1, d = 1.5, y = 2),
                     y = c(x = 0, d = 1, y = 0))
) |>
  tidy_dagitty() %>%
  mutate(fill = ifelse(name == "d", "Confounder", "variables of interest")) %>%
  ggplot(aes(x = x, y = y, xend = xend, yend = yend)) +
  geom_dag_point(size=7, aes(color = fill)) +
  geom_dag_edges(
    show.legend = FALSE,
    aes(
      edge_color = ifelse(name == 'd', 'gray80', 'darkgreen'),
      edge_linetype = ifelse(name == 'd', 'dashed', 'solid')
      ))+
  geom_dag_text() +
  theme_dag() +
  theme(legend.title  = element_blank(),
        legend.position = "top") +
  geom_text(aes(x = 1.5, y = 1, label = '← kept constant'), hjust = -0.3)
exper

Notes on choosing a model

• Often models assume a distribution of the error term
  • e.g., linear regression: normal distribution
• We can choose a model based on its assumptions
  • e.g., continuous data: linear regression
  • e.g., binary data: logistic regression
• Specialized methods for dependent observations
  • e.g., paired t-test \(\rightarrow\) test on difference of within-subject design
• Specialized methods for violations of assumptions
  • e.g., Wilcoxon signed-rank test as alternative to t-test

Visualizing Uncertainty: Simple experiments

• Outputs from statistical models should generally include:
  • Effect size
  • Test statistic calculated (incl. paramters) & p-value
  • It is typical to include an interpretation of significance
  • However, this is not recommended by statistical community. Wasserstein, Schirm, and Lazar (2019):

“if p = 0.03 then “…was statistically significant” would be replaced by “…had p = 0.03,””

• The ggstatsplot library (Patil 2021) provides useful functions to calculate and visualize statistical tests and model parameters
• Follows best practices
• ggbetweenstats & ggwithinstats for between- and within-subject experimental designs
  • Chooses automatically between t-test (2 groups) and ANOVA (3+ groups)
  • Large number of tests available
  • Choose type='nonparametric' for versions that are robust to violations of the normal-distribution assumption
  • Choose type='robust' for versions that are robust to a few outliers

library(ggstatsplot)
library(palmerpenguins)

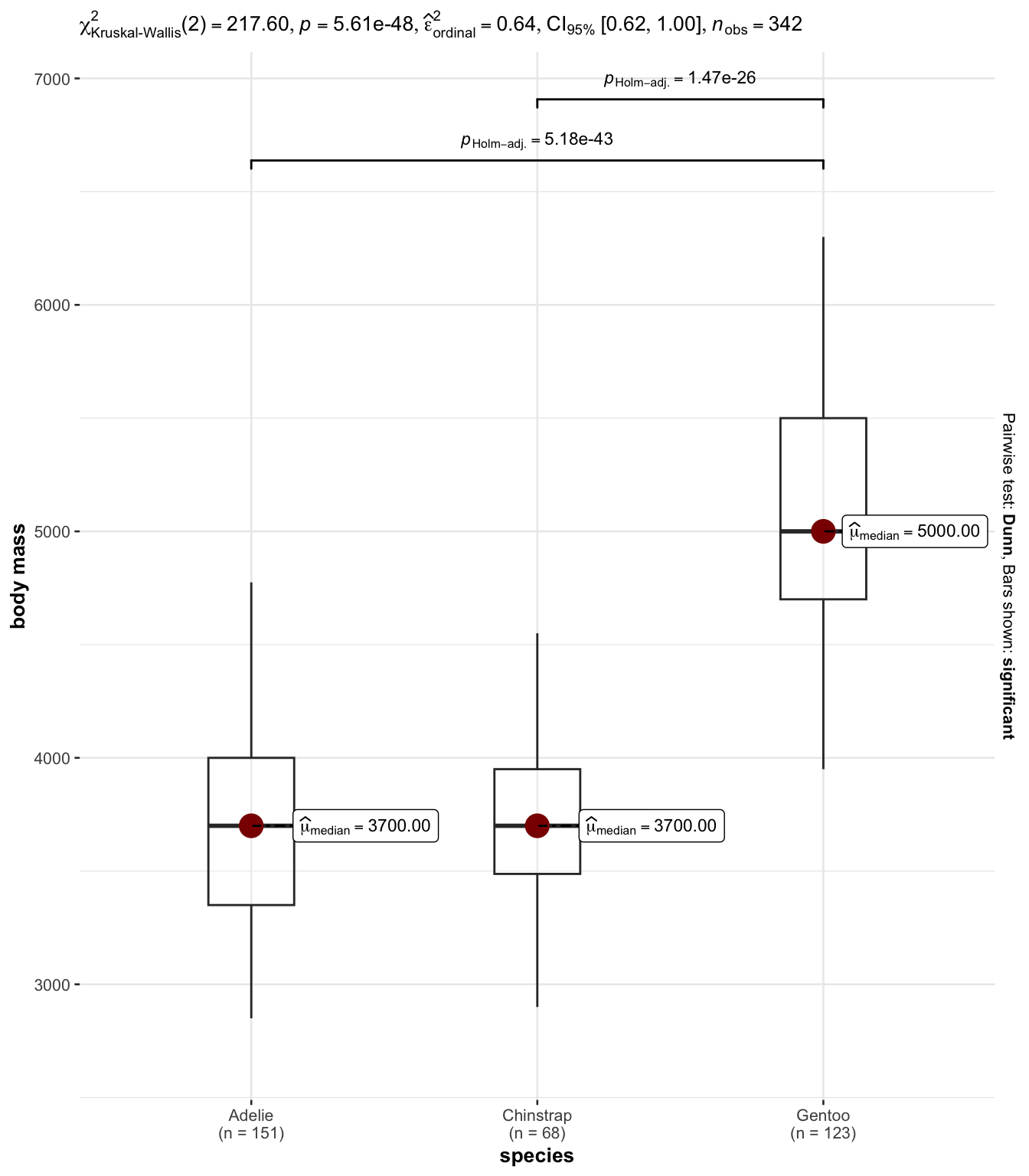

ggbetweenstats(
  data = penguins,
  x = species,
  y = body_mass_g,
  type = 'nonparametric',
  violin.args = list(width = 0, linewidth=0),
  point.args = list(alpha = 0),
  bf.message = FALSE
) + labs(y = "body mass")

Visualizing uncertainty: Regression models

• Use the ggcoefstats function to visualize the results of (currently) \(225\) different types of regression models

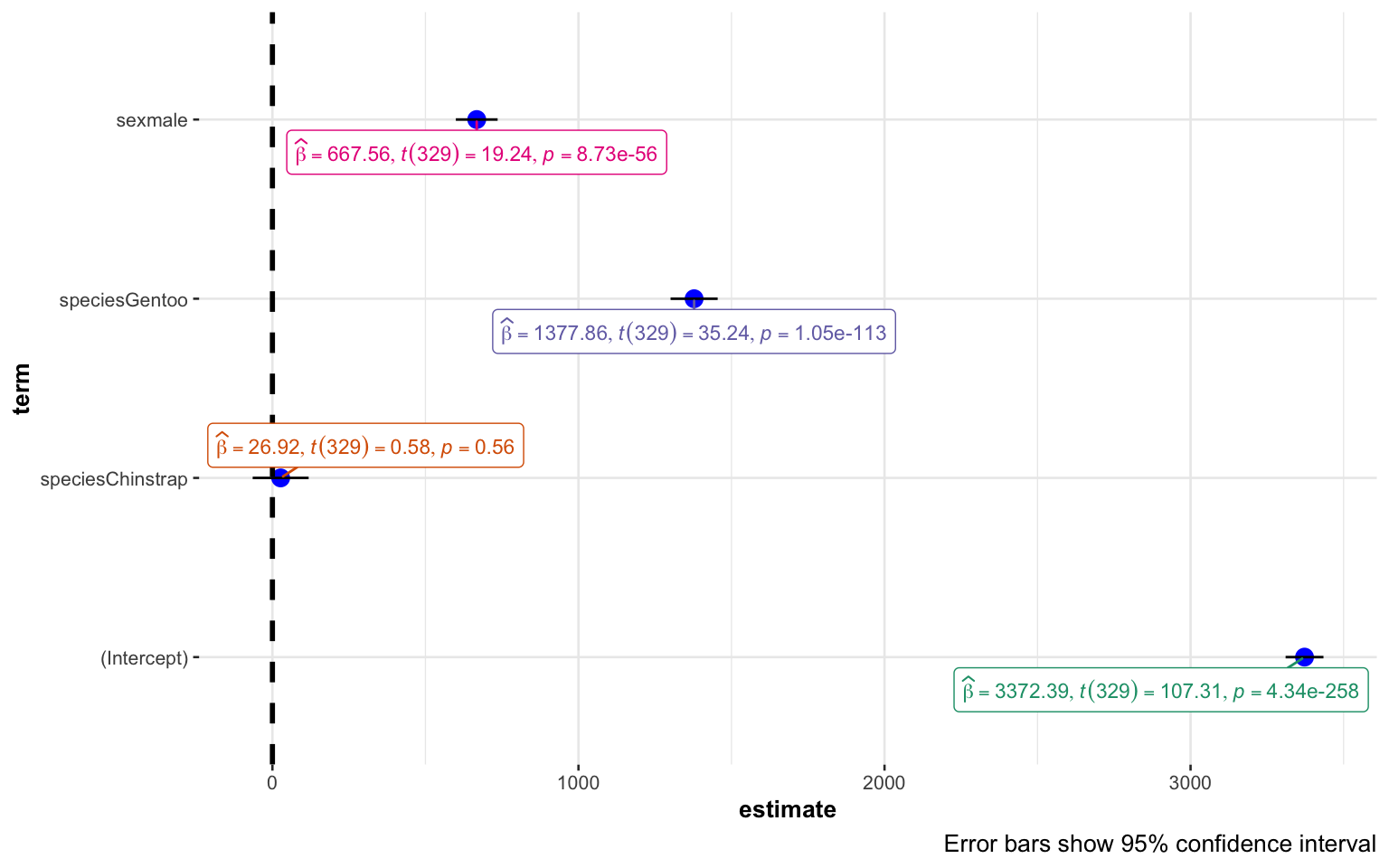

ggcoefstats(
  lm(body_mass_g ~ species + sex, data = penguins)
) + labs(caption = 'Error bars show 95% confidence interval')

Visualizing uncertainty: Regression models

• Coefficient names can be modified by providing a data.frame with the relevant statistics instead of the model

body_mass_mod <- lm(body_mass_g ~ species + sex, data = penguins)
tidy_coefs <- broom::tidy(body_mass_mod)
tidy_coefs$df.error <- body_mass_mod$df.residual
tidy_coefs <- confint(body_mass_mod) |>
  data.frame() |>
  dplyr::rename(conf.low = 'X2.5..', conf.high = 'X97.5..') |>
  cbind(tidy_coefs) |>
  mutate(term = str_replace_all(
    term, c(
      sexmale = "male (vs. female)",
      speciesGentoo = "Gentoo (vs. Adelie)",
      speciesChinstrap = "Chinstrap (vs. Adelie)"
    )))

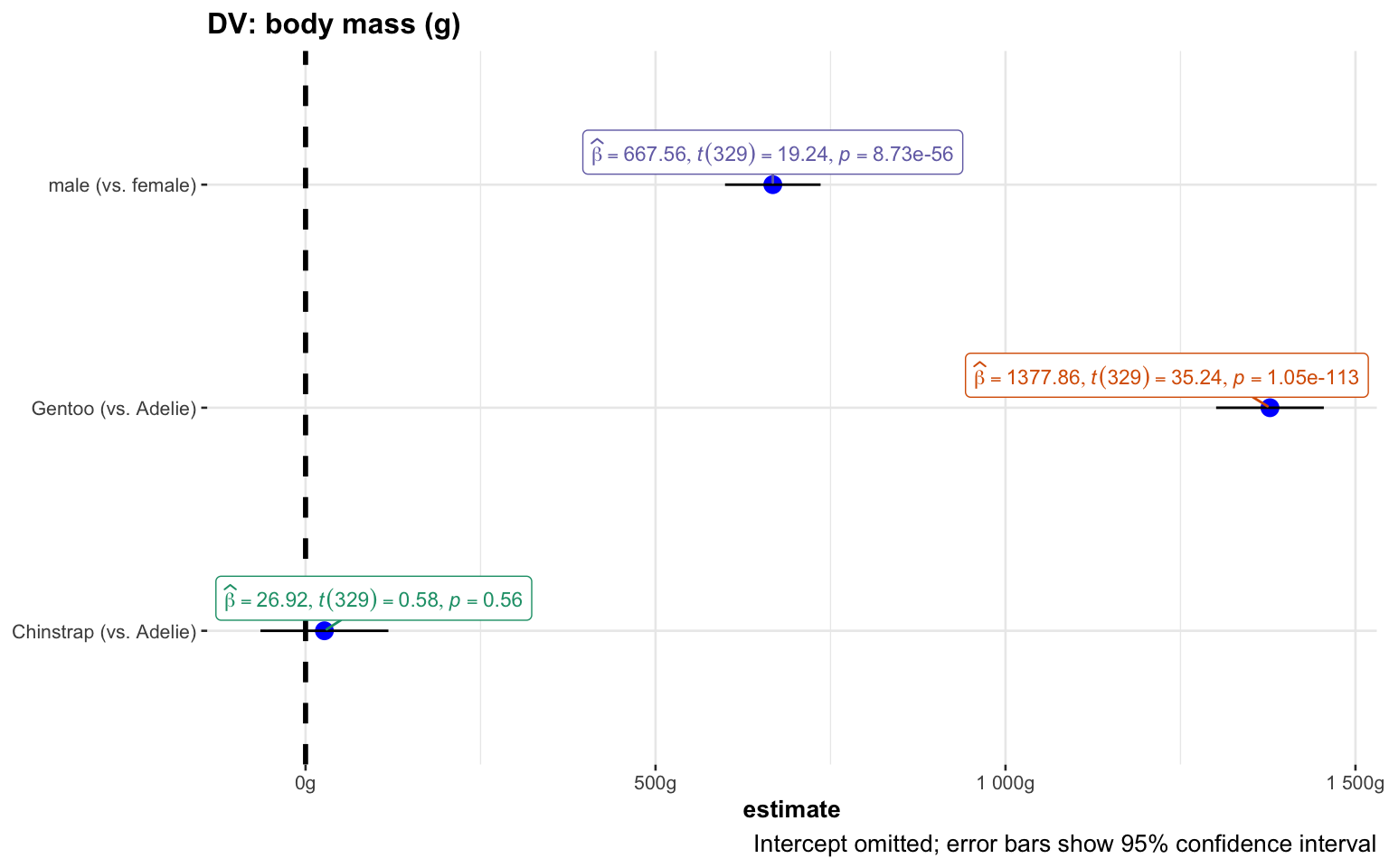

ggcoefstats(
  tidy_coefs,
  statistic = 't',
  exclude.intercept = TRUE
  ) +
  labs(title = 'DV: body mass (g)', caption = 'Intercept omitted; error bars show 95% confidence interval') +
  scale_x_continuous(labels = label_number(suffix = 'g')) +
  theme(axis.title.y = element_blank())

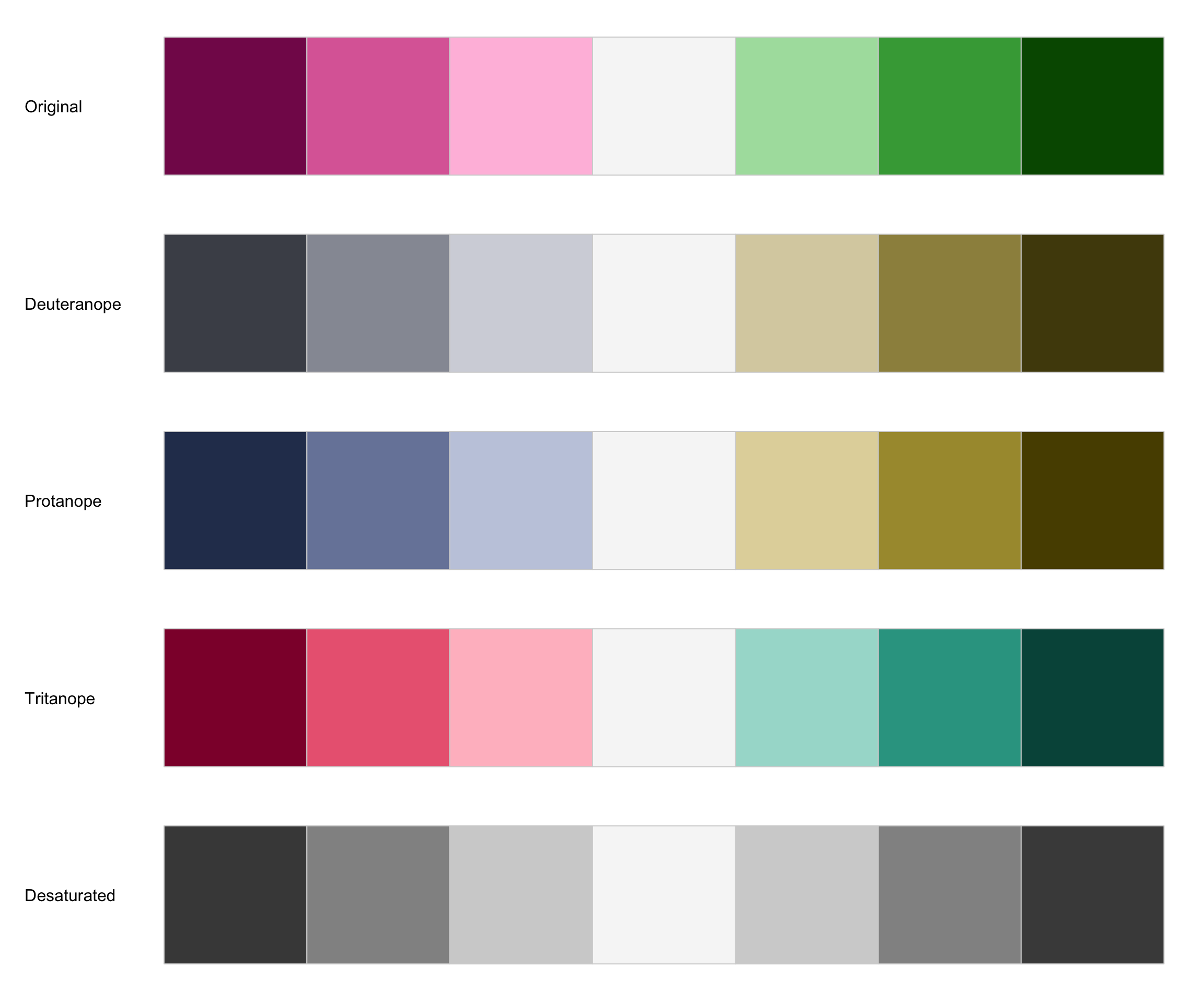

A few notes on colors

• The library(colorspace) has convenient functions for picking correct color patterns
• Palette type depends on the scaling of the data visualized
  • Is the data discrete or continuous?
  • Is there an ordering?
    • Is the ordering diverging (i.e., there is a neutral state)?
• There are convenience functions for ggplot

scale_<aesthetic>_<datatype>_<colorscale>()

• aesthetics: fill, color
• datatypes: discrete, continuous, binned
• colorscales: qualitative, sequential, diverging

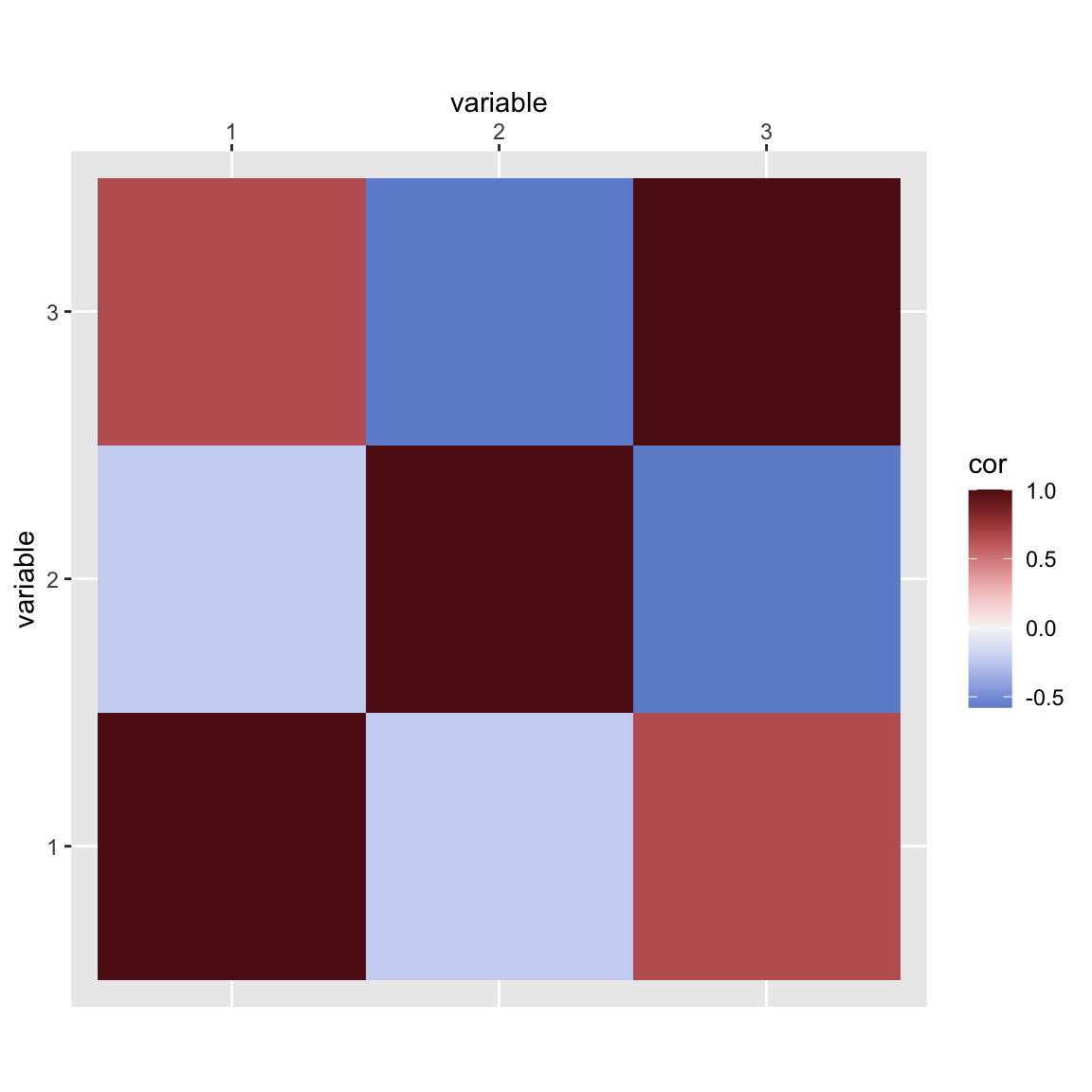

Diverging colors: correlation matrix

• Diverging from -1 to 1 with 0 as a neutral point

corrs <- palmerpenguins::penguins |>
  drop_na() |>
  select(bill_length_mm, bill_depth_mm, flipper_length_mm) |>
  cor()
cor_df <- data.frame(cor = c(corrs), var1 = factor(col(corrs)), var2 = factor(row(corrs)))
ggplot(cor_df, aes(var1, var2, fill = cor)) +
  geom_tile() +
  coord_fixed() +
  ylab("variable") +
  scale_x_discrete(position = "top", name = "variable") +
  scale_fill_continuous_diverging("Blue-Red 3")

Qualitative colors: Unordered groups

• Rule of thumb: visualize up to 7 groups with colors
• More become hard to differentiate

ggplot(penguins,
  aes(x = fct_revfreq(species),
      color = sex, fill = sex)) +
  geom_bar(stat = "count", position = 'dodge') +
  scale_fill_discrete_qualitative("pastel 1") +
  scale_y_continuous(
    expand = expansion(c(0,0.05)),
    breaks = seq(10,150, by = 20)) +
  labs(
    title = "Number of observations by species and sex",
    x = "Penguin Species"
    ) +
  theme_bw() +
    theme(
    plot.title=element_text(size=35),
    axis.ticks.x=element_blank(),
    axis.text=element_text(size=30),
    axis.title=element_text(size=30),
    legend.position='top',
    legend.text=element_text(size=25),
    legend.title=element_blank()
  )

Color Vision Deficiency

• ~8% of men and ~0.5% of women have color vision deficiency (CVD) (“color blindness”)
• We can simulate CVD using swatchplot(<palette>, cvd = TRUE)

swatchplot(diverging_hcl(7, 'Red-Green'), cvd = TRUE)

References

Patil, Indrajeet. 2021. “Visualizations with statistical details: The ’ggstatsplot’ approach.” Journal of Open Source Software 6 (61): 3167. https://doi.org/10.21105/joss.03167.

Wasserstein, Ronald L., Allen L. Schirm, and Nicole A. Lazar. 2019. “Moving to a World Beyond ‘p < 0.05’.” The American Statistician 73 (March): 1–19. https://doi.org/10.1080/00031305.2019.1583913.
